matrixStats.benchmarks


sum2() benchmarks on subsetted computation

This report benchmark the performance of sum2() on subsetted computation.

Data type “integer”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5339042 285.2    8529671 455.6   8529671 455.6
Vcells 16966105 129.5   35919338 274.1 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.003888 0.003944 0.0041001 0.0040685 0.0041925 0.005062
3 sum2(x[idxs]) 0.006465 0.006634 0.0090127 0.0067995 0.0069405 0.211990
2 sum2(x, idxs) 0.006585 0.006819 0.0071780 0.0069955 0.0071600 0.021329
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
3 sum2(x[idxs]) 1.662809 1.682049 2.198174 1.671255 1.655456 41.878704
2 sum2(x, idxs) 1.693673 1.728955 1.750705 1.719430 1.707812 4.213552

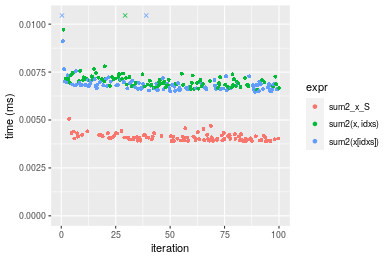

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337016 285.1    8529671 455.6   8529671 455.6
Vcells 15836808 120.9   35919338 274.1 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.016542 0.0171135 0.0180283 0.0175225 0.0181555 0.043571
3 sum2(x[idxs]) 0.037432 0.0386760 0.0411477 0.0397415 0.0410015 0.082208
2 sum2(x, idxs) 0.039996 0.0416600 0.0431274 0.0424055 0.0436945 0.060357
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
3 sum2(x[idxs]) 2.262846 2.259970 2.282401 2.268027 2.258351 1.886759
2 sum2(x, idxs) 2.417845 2.434335 2.392212 2.420060 2.406681 1.385256

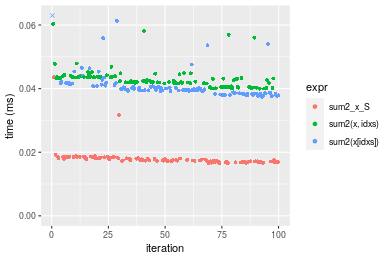

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337088 285.1    8529671 455.6   8529671 455.6
Vcells 15900368 121.4   35919338 274.1 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.103240 0.111763 0.1629306 0.1360855 0.2284565 0.309776
2 sum2(x, idxs) 0.275884 0.305763 0.4091385 0.3538015 0.5390420 0.732925
3 sum2(x[idxs]) 0.269274 0.291527 0.4129744 0.3563350 0.5721275 0.699163
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 2.672259 2.735816 2.511121 2.599847 2.359495 2.365984
3 sum2(x[idxs]) 2.608233 2.608439 2.534664 2.618464 2.504317 2.256995

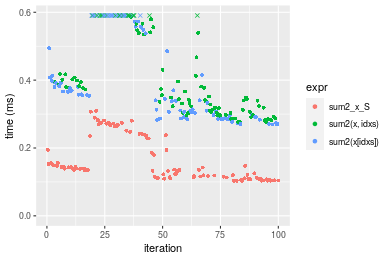

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337160 285.1    8529671 455.6   8529671 455.6
Vcells 16530417 126.2   35919338 274.1 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 1.035728 1.144772 1.198305 1.186244 1.218014 1.530576
3 sum2(x[idxs]) 3.770716 4.764187 5.140660 4.982477 5.170399 18.618434
2 sum2(x, idxs) 4.045700 6.052726 10.287626 6.256565 6.515727 388.068841
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.00000
3 sum2(x[idxs]) 3.640643 4.161689 4.289941 4.200215 4.244942 12.16433
2 sum2(x, idxs) 3.906141 5.287274 8.585145 5.274267 5.349468 253.54431

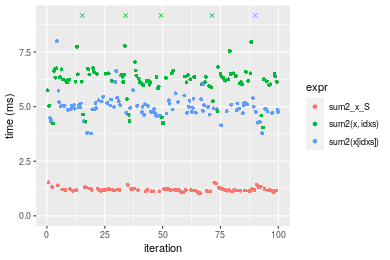

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000000 vector

> x <- data[["n = 10000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337232 285.1    8529671 455.6   8529671 455.6
Vcells 22830465 174.2   35919338 274.1 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 11.93667 15.40207 17.26997 16.03664 20.18322 25.04504
2 sum2(x, idxs) 119.20238 133.66502 142.01954 143.87386 149.18902 169.49411
3 sum2(x[idxs]) 128.06503 140.13187 148.41911 145.64447 148.90959 502.87241
  expr min lq mean median uq max
1 sum2_x_S 1.00000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 9.98623 8.678378 8.223495 8.971574 7.391736 6.767573
3 sum2(x[idxs]) 10.72870 9.098246 8.594056 9.081984 7.377891 20.078725

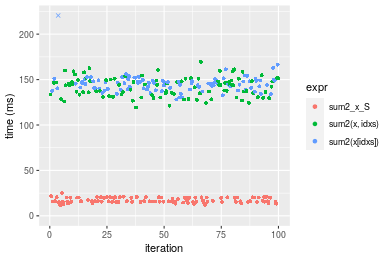

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337304 285.1    8529671 455.6   8529671 455.6
Vcells 21387621 163.2   43183205 329.5 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.003315 0.0068155 0.0065835 0.0070115 0.0071520 0.007755
3 sum2(x[idxs]) 0.005372 0.0105045 0.0107345 0.0108215 0.0110625 0.051268
2 sum2(x, idxs) 0.006120 0.0117700 0.0117878 0.0121080 0.0122820 0.014512
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
3 sum2(x[idxs]) 1.620513 1.541266 1.630519 1.543393 1.546770 6.610961
2 sum2(x, idxs) 1.846154 1.726946 1.790510 1.726877 1.717282 1.871309

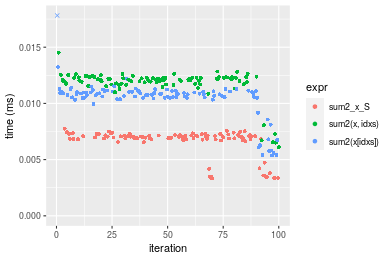

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337376 285.1    8529671 455.6   8529671 455.6
Vcells 21397118 163.3   43183205 329.5 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.012539 0.013029 0.0138391 0.0133220 0.0136885 0.025307
3 sum2(x[idxs]) 0.029324 0.030377 0.0344914 0.0326805 0.0351940 0.098803
2 sum2(x, idxs) 0.037780 0.038241 0.0419622 0.0406485 0.0418245 0.082499
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
3 sum2(x[idxs]) 2.338624 2.331491 2.492310 2.453123 2.571063 3.904177
2 sum2(x, idxs) 3.012999 2.935068 3.032139 3.051231 3.055448 3.259928

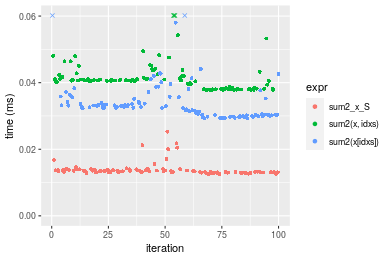

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337448 285.1    8529671 455.6   8529671 455.6
Vcells 21491986 164.0   43183205 329.5 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.074775 0.0787330 0.0948227 0.0911010 0.1053205 0.176324
2 sum2(x, idxs) 0.267652 0.2787425 0.3251536 0.3077015 0.3561590 0.504595
3 sum2(x[idxs]) 0.255743 0.2721100 0.3210709 0.3160875 0.3490395 0.603275
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 3.579432 3.540352 3.429068 3.377586 3.381668 2.861749
3 sum2(x[idxs]) 3.420167 3.456111 3.386012 3.469638 3.314070 3.421400

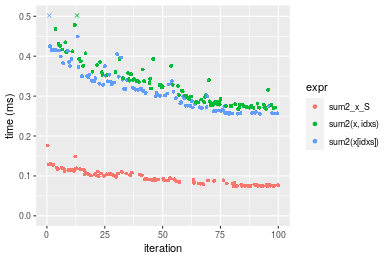

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337520 285.1    8529671 455.6   8529671 455.6
Vcells 22437417 171.2   43183205 329.5 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 1.275939 1.346394 1.409058 1.372686 1.447218 1.930537
3 sum2(x[idxs]) 7.534066 9.775640 10.968739 10.861674 12.071755 22.010154
2 sum2(x, idxs) 7.902787 10.818909 12.123413 11.409294 12.962701 25.696688
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.00000
3 sum2(x[idxs]) 5.904723 7.260612 7.784446 7.912713 8.341352 11.40105
2 sum2(x, idxs) 6.193703 8.035473 8.603910 8.311653 8.956979 13.31064

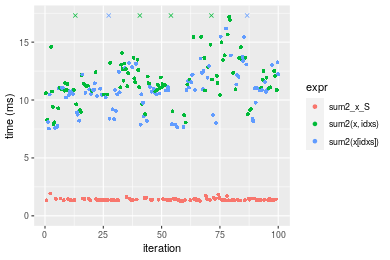

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000000 vector

> x <- data[["n = 10000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb)  max used  (Mb)
Ncells  5337592 285.1    8529671 455.6   8529671 455.6
Vcells 31887465 243.3   51899846 396.0 101881463 777.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 10.47633 13.53525 16.05734 14.62333 19.78404 21.19626
2 sum2(x, idxs) 129.07190 168.06425 180.12031 175.49009 187.25718 571.11144
3 sum2(x[idxs]) 138.63391 179.40518 187.78671 185.09707 196.74914 216.24259
  expr min lq mean median uq max
1 sum2_x_S 1.00000 1.00000 1.00000 1.00000 1.000000 1.00000
2 sum2(x, idxs) 12.32034 12.41678 11.21732 12.00070 9.465061 26.94397
3 sum2(x[idxs]) 13.23306 13.25466 11.69476 12.65766 9.944840 10.20192

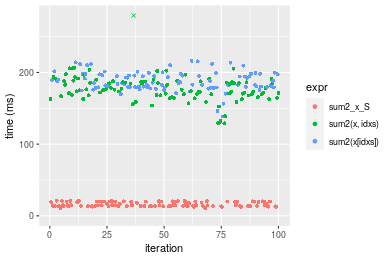

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.1     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rappdirs_0.3.3          startup_0.15.0          labeling_0.4.2
[67] bitops_1.0-7            base64enc_0.1-3         boot_1.3-28
[70] gtable_0.3.0            DBI_1.1.1               markdown_1.1
[73] R6_2.5.1                lpSolveAPI_5.5.2.0-17.7 rle_0.9.2
[76] dplyr_1.0.7             fastmap_1.1.0           bit_4.0.4
[79] utf8_1.2.2              parallel_4.1.1          Rcpp_1.0.7
[82] vctrs_0.3.8             png_0.1-7               DEoptimR_1.0-9
[85] tidyselect_1.1.1        xfun_0.25               coda_0.19-4

Total processing time was 1.51 mins.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('sum2_subset')

Copyright Dongcan Jiang. Last updated on 2021-08-25 19:27:41 (+0200 UTC). Powered by RSP.
