matrixStats.benchmarks

---

colRanks() and rowRanks() benchmarks

This report benchmark the performance of colRanks() and rowRanks() against alternative methods.

Alternative methods

• apply() + rank()

Data type “integer”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 integer matrix

> X <- data[["10x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5296043 282.9    8529671 455.6  8529671 455.6
Vcells 10488202  80.1   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285616 282.3    8529671 455.6  8529671 455.6
Vcells 10453886  79.8   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.009014	0.010537	0.0133995	0.0128095	0.0146875	0.052527
2	apply+rank	0.175517	0.188254	0.2033132	0.1968395	0.2118285	0.363077

	expr	min	lq	mean	median	uq	max
1	colRanks	1.0000	1.000	1.00000	1.00000	1.00000	1.000000
2	apply+rank	19.4716	17.866	15.17316	15.36668	14.42237	6.912198

Table: Benchmarking of rowRanks() and apply+rank() on integer+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.004989	0.0061185	0.0080215	0.0078220	0.008808	0.028234
2	apply+rank	0.183184	0.1874655	0.2053397	0.2002645	0.215099	0.363796

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	36.71758	30.63913	25.59854	25.60272	24.42087	12.88503

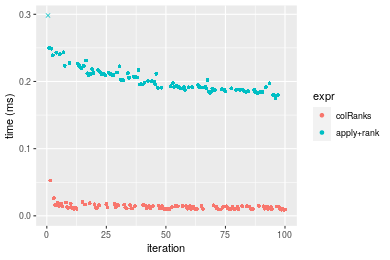

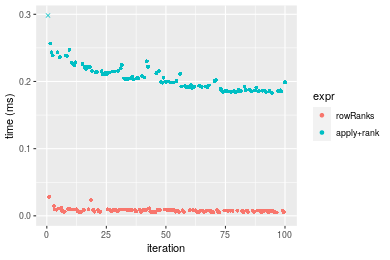

Figure: Benchmarking of colRanks() and apply+rank() on integer+10x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	4.989	6.1185	8.02154	7.8220	8.8080	28.234
1	colRanks	9.014	10.5370	13.39953	12.8095	14.6875	52.527

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.806775	1.722154	1.670444	1.637625	1.667518	1.860416

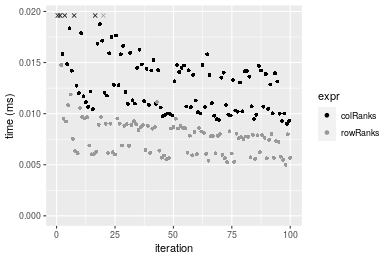

Figure: Benchmarking of colRanks() and rowRanks() on integer+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 integer matrix

> X <- data[["100x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5284194 282.3    8529671 455.6  8529671 455.6
Vcells 10070418  76.9   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5284170 282.3    8529671 455.6  8529671 455.6
Vcells 10075431  76.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.325828	0.3527675	0.3651718	0.3626235	0.3707635	0.581563
2	apply+rank	1.864600	2.0197600	2.1052778	2.0485455	2.0923125	3.353820

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.722651	5.725471	5.765171	5.649235	5.643254	5.766908

Table: Benchmarking of rowRanks() and apply+rank() on integer+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.312048	0.3309755	0.3471963	0.341463	0.349599	0.448921
2	apply+rank	1.871260	1.9599765	2.0646226	2.018016	2.046404	3.365877

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.00000	1.000000	1.000000
2	apply+rank	5.996706	5.921818	5.946557	5.90991	5.853576	7.497705

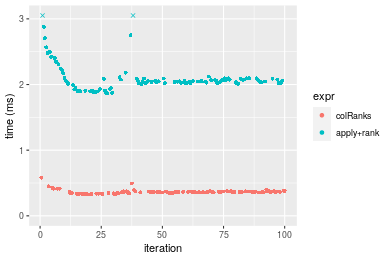

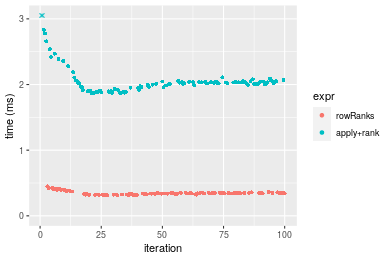

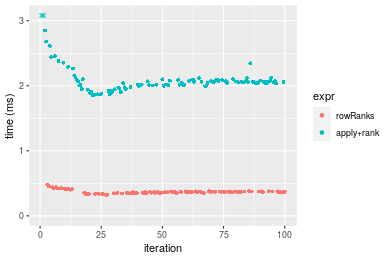

Figure: Benchmarking of colRanks() and apply+rank() on integer+100x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	312.048	330.9755	347.1963	341.4630	349.5990	448.921
1	colRanks	325.828	352.7675	365.1718	362.6235	370.7635	581.563

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.00000	1.000000	1.000000	1.00000	1.000000	1.000000
1	colRanks	1.04416	1.065842	1.051773	1.06197	1.060539	1.295468

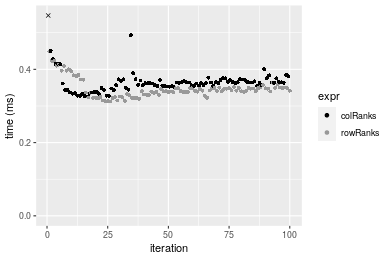

Figure: Benchmarking of colRanks() and rowRanks() on integer+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 integer matrix

> X <- data[["1000x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5284912 282.3    8529671 455.6  8529671 455.6
Vcells 10073904  76.9   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5284900 282.3    8529671 455.6  8529671 455.6
Vcells 10078937  76.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.397505	0.407839	0.4404022	0.4224085	0.4402555	0.695708
2	apply+rank	1.105536	1.134754	1.2163656	1.1756700	1.2188150	1.784832

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
2	apply+rank	2.781188	2.782358	2.761943	2.783254	2.768426	2.56549

Table: Benchmarking of rowRanks() and apply+rank() on integer+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.383316	0.394386	0.4321836	0.4079505	0.4426085	0.667490
2	apply+rank	1.108006	1.129076	1.2264912	1.1675065	1.2242945	1.826586

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.00000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.890581	2.86287	2.837894	2.861883	2.766089	2.736499

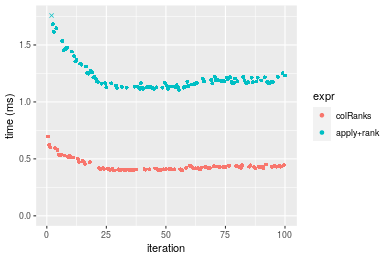

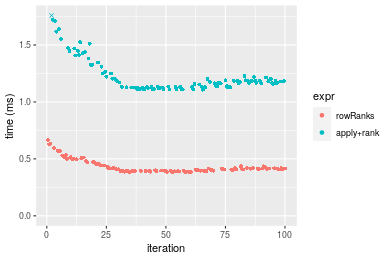

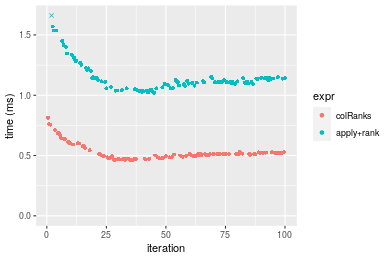

Figure: Benchmarking of colRanks() and apply+rank() on integer+1000x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	383.316	394.386	432.1836	407.9505	442.6085	667.490
1	colRanks	397.505	407.839	440.4022	422.4085	440.2555	695.708

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.0000000	1.000000
1	colRanks	1.037017	1.034111	1.019016	1.035441	0.9946838	1.042275

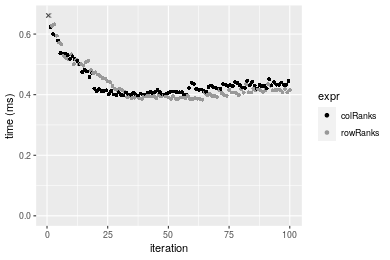

Figure: Benchmarking of colRanks() and rowRanks() on integer+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 integer matrix

> X <- data[["10x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285112 282.3    8529671 455.6  8529671 455.6
Vcells 10074607  76.9   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285088 282.3    8529671 455.6  8529671 455.6
Vcells 10079620  77.0   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.216078	0.2409835	0.2598046	0.254758	0.2749385	0.425755
2	apply+rank	12.013302	13.3925330	13.9610522	13.691698	13.9690305	20.377503

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	55.59706	55.57448	53.73675	53.74394	50.80784	47.86204

Table: Benchmarking of rowRanks() and apply+rank() on integer+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.203776	0.223232	0.2384098	0.234122	0.2514345	0.314973
2	apply+rank	12.115854	13.489060	14.0031462	13.754625	13.9876730	20.612579

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.0000	1.00000	1.00000	1.00000
2	apply+rank	59.45673	60.42619	58.7356	58.74982	55.63148	65.44237

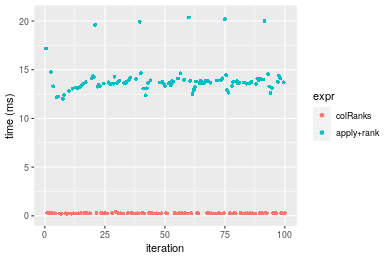

Figure: Benchmarking of colRanks() and apply+rank() on integer+10x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	203.776	223.2320	238.4099	234.122	251.4345	314.973
1	colRanks	216.078	240.9835	259.8046	254.758	274.9385	425.755

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.00000	1.00000	1.000000	1.000000	1.00000	1.000000
1	colRanks	1.06037	1.07952	1.089739	1.088142	1.09348	1.351719

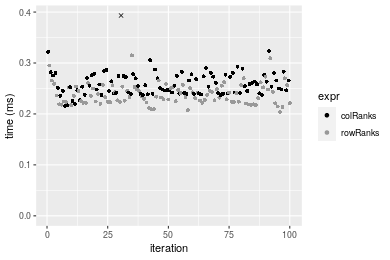

Figure: Benchmarking of colRanks() and rowRanks() on integer+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 integer matrix

> X <- data[["100x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285284 282.3    8529671 455.6  8529671 455.6
Vcells 10075078  76.9   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285272 282.3    8529671 455.6  8529671 455.6
Vcells 10125111  77.3   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.248488	3.566107	3.621077	3.598609	3.674085	4.118365
2	apply+rank	18.941262	20.733461	21.804195	20.894393	21.177508	39.260674

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.830793	5.814033	6.021467	5.806242	5.764023	9.533073

Table: Benchmarking of rowRanks() and apply+rank() on integer+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.104706	3.446195	3.516167	3.516754	3.584367	4.058024
2	apply+rank	18.931283	20.580648	21.969310	20.857215	21.076720	51.496457

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
2	apply+rank	6.097609	5.971991	6.248085	5.930815	5.880178	12.69003

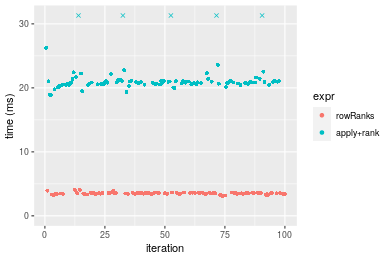

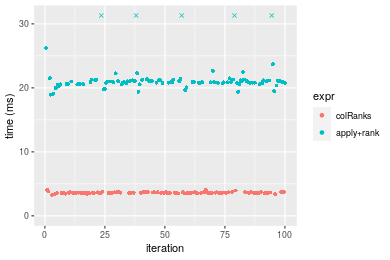

Figure: Benchmarking of colRanks() and apply+rank() on integer+100x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	3.104706	3.446195	3.516167	3.516754	3.584367	4.058024
1	colRanks	3.248488	3.566107	3.621077	3.598609	3.674085	4.118365

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.00000	1.00000
1	colRanks	1.046311	1.034795	1.029836	1.023276	1.02503	1.01487

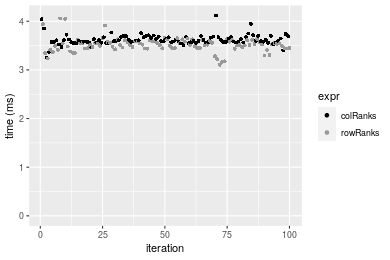

Figure: Benchmarking of colRanks() and rowRanks() on integer+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 integer matrix

> X <- data[["1000x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285476 282.3    8529671 455.6  8529671 455.6
Vcells 10075645  76.9   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285464 282.3    8529671 455.6  8529671 455.6
Vcells 10125678  77.3   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.942987	4.361862	4.395244	4.393266	4.433484	6.156542
2	apply+rank	10.887000	11.634628	12.117281	11.822842	11.887505	22.256348

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.761105	2.667353	2.756908	2.691128	2.681301	3.615073

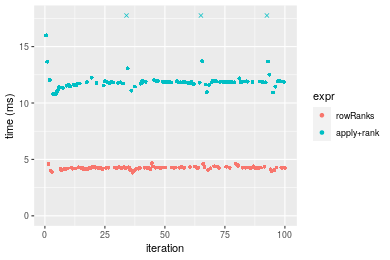

Table: Benchmarking of rowRanks() and apply+rank() on integer+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.833533	4.201035	4.252639	4.265088	4.285115	4.674939
2	apply+rank	10.765966	11.724815	12.162356	11.850800	11.911581	22.778089

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.808367	2.790934	2.859955	2.778559	2.779757	4.872382

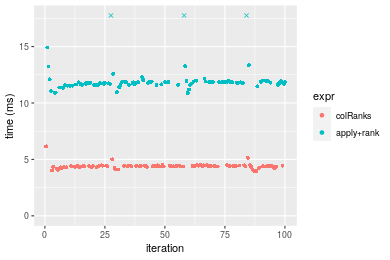

Figure: Benchmarking of colRanks() and apply+rank() on integer+1000x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	3.833533	4.201035	4.252639	4.265088	4.285115	4.674939
1	colRanks	3.942987	4.361862	4.395244	4.393266	4.433484	6.156542

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.028552	1.038283	1.033533	1.030053	1.034624	1.316925

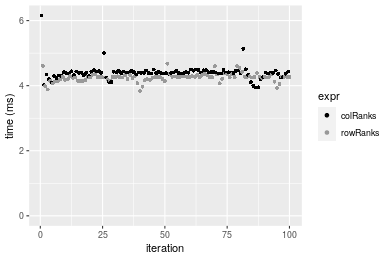

Figure: Benchmarking of colRanks() and rowRanks() on integer+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 double matrix

> X <- data[["10x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285688 282.3    8529671 455.6  8529671 455.6
Vcells 10192030  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285655 282.3    8529671 455.6  8529671 455.6
Vcells 10192128  77.8   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.009555	0.010656	0.0141985	0.013300	0.0152465	0.047735
2	apply+rank	0.182566	0.189651	0.2079538	0.205343	0.2169530	0.364796

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.000000
2	apply+rank	19.10685	17.79758	14.64621	15.43932	14.22969	7.642107

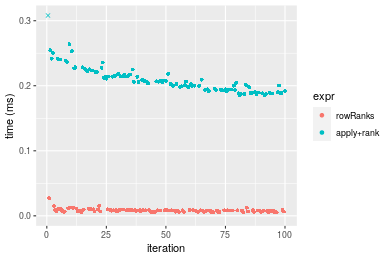

Table: Benchmarking of rowRanks() and apply+rank() on double+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.005091	0.006504	0.0082866	0.0081635	0.008798	0.027020
2	apply+rank	0.185103	0.193652	0.2095009	0.2054140	0.217777	0.362862

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	36.35887	29.77429	25.28198	25.16249	24.75301	13.42939

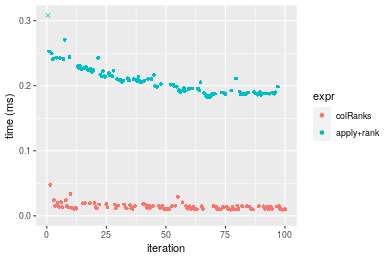

Figure: Benchmarking of colRanks() and apply+rank() on double+10x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	5.091	6.504	8.28657	8.1635	8.7980	27.020
1	colRanks	9.555	10.656	14.19847	13.3000	15.2465	47.735

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.876842	1.638376	1.713431	1.629203	1.732951	1.766654

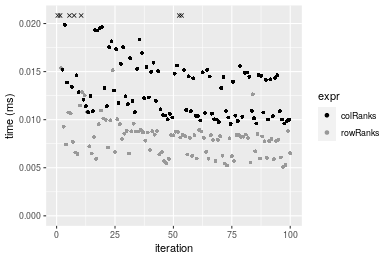

Figure: Benchmarking of colRanks() and rowRanks() on double+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 double matrix

> X <- data[["100x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285868 282.3    8529671 455.6  8529671 455.6
Vcells 10192142  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5285844 282.3    8529671 455.6  8529671 455.6
Vcells 10202155  77.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.343319	0.3768595	0.390581	0.3842895	0.3940605	0.854856
2	apply+rank	1.849059	2.0032120	2.104805	2.0542620	2.0862225	3.574331

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.385834	5.315541	5.388908	5.345611	5.294168	4.181208

Table: Benchmarking of rowRanks() and apply+rank() on double+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.323700	0.354027	0.3697664	0.3648245	0.374326	0.482087
2	apply+rank	1.858874	2.003887	2.1127440	2.0533810	2.090122	4.298257

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.742583	5.660267	5.713726	5.628408	5.583694	8.915936

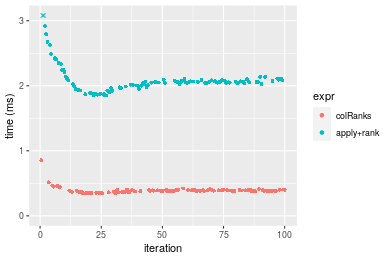

Figure: Benchmarking of colRanks() and apply+rank() on double+100x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	323.700	354.0270	369.7664	364.8245	374.3260	482.087
1	colRanks	343.319	376.8595	390.5810	384.2895	394.0605	854.856

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.00000	1.00000
1	colRanks	1.060609	1.064494	1.056291	1.053354	1.05272	1.77324

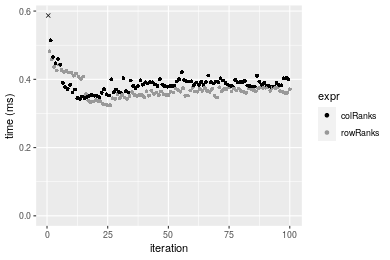

Figure: Benchmarking of colRanks() and rowRanks() on double+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 double matrix

> X <- data[["1000x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286046 282.4    8529671 455.6  8529671 455.6
Vcells 10193014  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286034 282.4    8529671 455.6  8529671 455.6
Vcells 10203047  77.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.462211	0.485145	0.5259032	0.5110025	0.524363	0.813817
2	apply+rank	1.021246	1.080353	1.1444088	1.1102830	1.142707	1.667586

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.000000	1.000000	1.000000	1.00000	1.000000
2	apply+rank	2.20948	2.226865	2.176083	2.172754	2.17923	2.049092

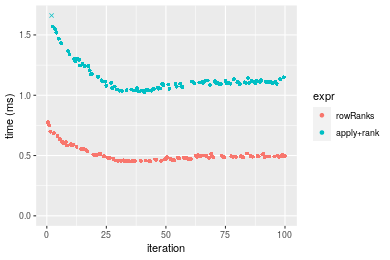

Table: Benchmarking of rowRanks() and apply+rank() on double+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.450571	0.4714095	0.5082708	0.491185	0.509915	0.776035
2	apply+rank	1.023346	1.0720225	1.1379772	1.103052	1.125317	1.683360

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.000000	1.000000	1.000000	1.000000	1.00000
2	apply+rank	2.27122	2.274079	2.238919	2.245696	2.206873	2.16918

Figure: Benchmarking of colRanks() and apply+rank() on double+1000x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	450.571	471.4095	508.2708	491.1850	509.915	776.035
1	colRanks	462.211	485.1450	525.9032	511.0025	524.363	813.817

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.025834	1.029137	1.034691	1.040346	1.028334	1.048686

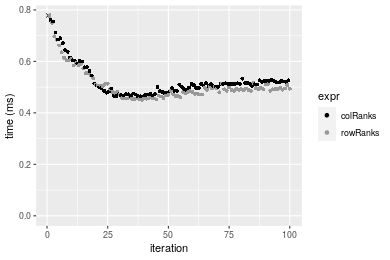

Figure: Benchmarking of colRanks() and rowRanks() on double+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 double matrix

> X <- data[["10x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286246 282.4    8529671 455.6  8529671 455.6
Vcells 10193159  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286222 282.4    8529671 455.6  8529671 455.6
Vcells 10203172  77.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.230283	0.263288	0.279568	0.276878	0.2959895	0.338731
2	apply+rank	12.181609	13.703907	14.387166	14.026328	14.3931825	20.739693

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	52.89843	52.04911	51.46214	50.65887	48.62734	61.22762

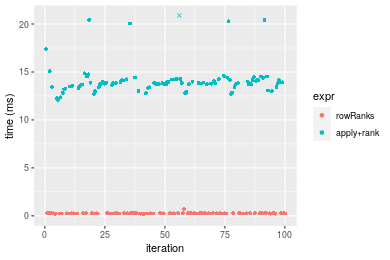

Table: Benchmarking of rowRanks() and apply+rank() on double+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.219818	0.244094	0.2615913	0.2560935	0.270608	0.724304
2	apply+rank	12.066414	13.535125	14.1237460	13.8348695	14.177196	20.985527

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	54.89275	55.45046	53.99166	54.02273	52.39016	28.97337

Figure: Benchmarking of colRanks() and apply+rank() on double+10x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	219.818	244.094	261.5913	256.0935	270.6080	724.304
1	colRanks	230.283	263.288	279.5680	276.8780	295.9895	338.731

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.00000	1.000000	1.0000000
1	colRanks	1.047608	1.078634	1.068721	1.08116	1.093794	0.4676641

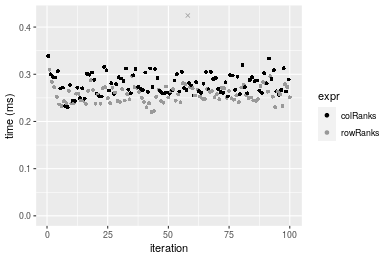

Figure: Benchmarking of colRanks() and rowRanks() on double+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 double matrix

> X <- data[["100x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286418 282.4    8529671 455.6  8529671 455.6
Vcells 10194275  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286406 282.4    8529671 455.6  8529671 455.6
Vcells 10294308  78.6   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.424245	3.785846	3.855124	3.84398	3.900854	4.369634
2	apply+rank	18.444679	20.476261	21.679959	20.73822	20.973694	40.490981

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.386495	5.408636	5.623674	5.394986	5.376692	9.266447

Table: Benchmarking of rowRanks() and apply+rank() on double+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.400866	3.680077	3.745937	3.749219	3.835295	4.18335
2	apply+rank	18.868889	20.590027	21.827391	20.867936	21.153279	40.97736

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.54826	5.594999	5.826951	5.565943	5.515423	9.795345

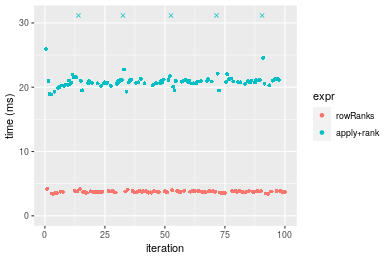

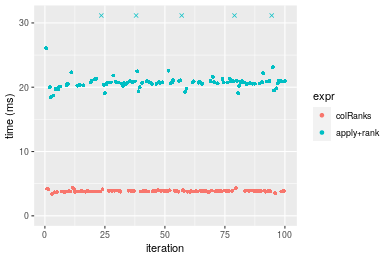

Figure: Benchmarking of colRanks() and apply+rank() on double+100x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	3.400866	3.680077	3.745937	3.749219	3.835295	4.183350
1	colRanks	3.424245	3.785846	3.855124	3.843980	3.900854	4.369634

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
1	colRanks	1.006874	1.028741	1.029148	1.025275	1.017094	1.04453

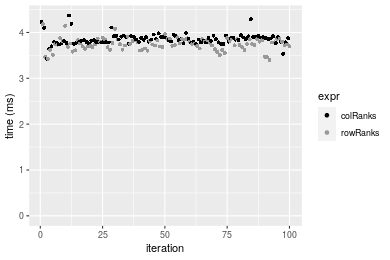

Figure: Benchmarking of colRanks() and rowRanks() on double+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 double matrix

> X <- data[["1000x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286610 282.4    8529671 455.6  8529671 455.6
Vcells 10194404  77.8   31876688 243.2 60562128 462.1
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5286598 282.4    8529671 455.6  8529671 455.6
Vcells 10294437  78.6   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	4.636599	5.116938	5.191458	5.153241	5.251645	7.086629
2	apply+rank	9.938401	10.928384	11.522790	11.024809	11.201870	22.739847

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.143468	2.135727	2.219567	2.139393	2.133021	3.208838

Table: Benchmarking of rowRanks() and apply+rank() on double+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	4.491859	4.943079	5.01660	4.988339	5.100483	5.768094
2	apply+rank	10.005577	10.977875	11.50196	11.076504	11.251563	20.954353

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.00000	1.00000	1.00000	1.000000
2	apply+rank	2.227491	2.220858	2.29278	2.22048	2.20598	3.632804

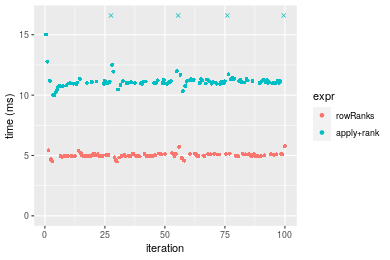

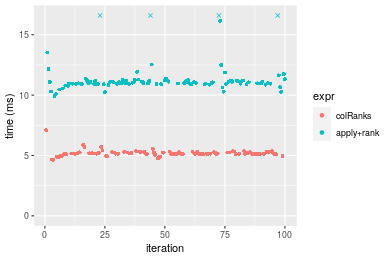

Figure: Benchmarking of colRanks() and apply+rank() on double+1000x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	4.491859	4.943079	5.016600	4.988339	5.100483	5.768094
1	colRanks	4.636599	5.116938	5.191458	5.153241	5.251645	7.086629

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.032223	1.035172	1.034856	1.033058	1.029637	1.228591

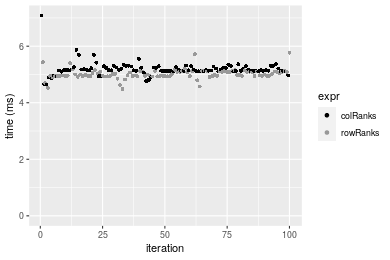

Figure: Benchmarking of colRanks() and rowRanks() on double+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.1     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rappdirs_0.3.3          startup_0.15.0          labeling_0.4.2
[67] bitops_1.0-7            base64enc_0.1-3         boot_1.3-28
[70] gtable_0.3.0            DBI_1.1.1               markdown_1.1
[73] R6_2.5.1                lpSolveAPI_5.5.2.0-17.7 rle_0.9.2
[76] dplyr_1.0.7             fastmap_1.1.0           bit_4.0.4
[79] utf8_1.2.2              parallel_4.1.1          Rcpp_1.0.7
[82] vctrs_0.3.8             png_0.1-7               DEoptimR_1.0-9
[85] tidyselect_1.1.1        xfun_0.25               coda_0.19-4

Total processing time was 46.85 secs.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('colRanks')

---

Copyright Henrik Bengtsson. Last updated on 2021-08-25 19:08:41 (+0200 UTC). Powered by RSP.
