matrixStats.benchmarks

---

colOrderStats() and rowOrderStats() benchmarks on subsetted computation

This report benchmark the performance of colOrderStats() and rowOrderStats() on subsetted computation.

Data type “integer”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 integer matrix

> X <- data[["10x10"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5263975 281.2    8529671 455.6  8529671 455.6
Vcells 10236773  78.2   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255029 280.7    8529671 455.6  8529671 455.6
Vcells 10207528  77.9   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.003129	0.0032170	0.0047680	0.0032730	0.0033700	0.132718
2	colOrderStats(X, rows, cols)	0.003543	0.0036650	0.0039469	0.0037210	0.0038385	0.011956
3	colOrderStats(X[rows, cols])	0.003902	0.0042565	0.0045577	0.0043655	0.0044990	0.011916

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.0000000	1.000000	1.000000	1.0000000
2	colOrderStats(X, rows, cols)	1.132311	1.139260	0.8277814	1.136877	1.139021	0.0900857
3	colOrderStats(X[rows, cols])	1.247044	1.323127	0.9558915	1.333792	1.335015	0.0897844

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.003206	0.0032975	0.0034111	0.0033395	0.0034290	0.006321
2	rowOrderStats(X, cols, rows)	0.003675	0.0038090	0.0050754	0.0038685	0.0039845	0.117801
3	rowOrderStats(X[cols, rows])	0.004097	0.0043385	0.0045615	0.0044550	0.0046565	0.007595

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
2	rowOrderStats(X, cols, rows)	1.146288	1.155118	1.487933	1.158407	1.162001	18.63645
3	rowOrderStats(X[cols, rows])	1.277916	1.315694	1.337276	1.334032	1.357976	1.20155

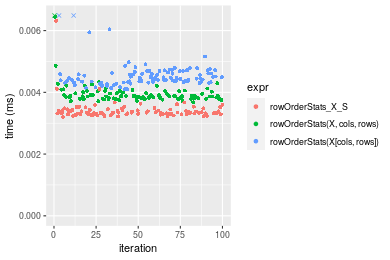

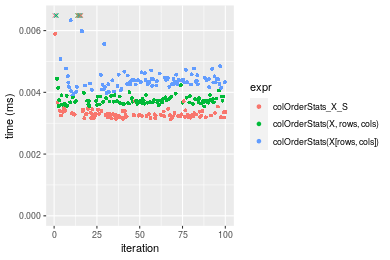

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+10x10 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	3.129	3.2170	4.76801	3.2730	3.370	132.718
2	rowOrderStats_X_S	3.206	3.2975	3.41106	3.3395	3.429	6.321

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.0000000	1.000000	1.000000	1.0000000
2	rowOrderStats_X_S	1.024609	1.025023	0.7154054	1.020318	1.017507	0.0476273

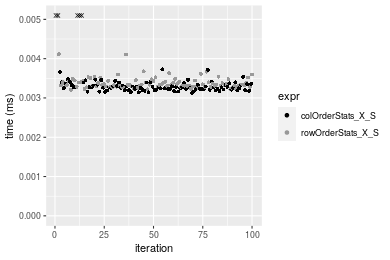

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 integer matrix

> X <- data[["100x100"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5253692 280.6    8529671 455.6  8529671 455.6
Vcells 9875894  75.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5253667 280.6    8529671 455.6  8529671 455.6
Vcells 9880946  75.4   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.066108	0.0707340	0.0770688	0.0750445	0.0815830	0.096272
2	colOrderStats(X, rows, cols)	0.074029	0.0783500	0.0851521	0.0832290	0.0903345	0.110941
3	colOrderStats(X[rows, cols])	0.077098	0.0809025	0.0895003	0.0860835	0.0970160	0.149868

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.119819	1.107671	1.104883	1.109062	1.107271	1.152370
3	colOrderStats(X[rows, cols])	1.166243	1.143757	1.161303	1.147099	1.189169	1.556714

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.064871	0.0686835	0.0752604	0.0740360	0.0805175	0.101112
2	rowOrderStats(X, cols, rows)	0.073535	0.0769715	0.0844522	0.0827860	0.0887010	0.131338
3	rowOrderStats(X[cols, rows])	0.075465	0.0795395	0.0861517	0.0855185	0.0912645	0.112330

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.133557	1.120669	1.122133	1.118186	1.101636	1.298936
3	rowOrderStats(X[cols, rows])	1.163309	1.158058	1.144714	1.155093	1.133474	1.110946

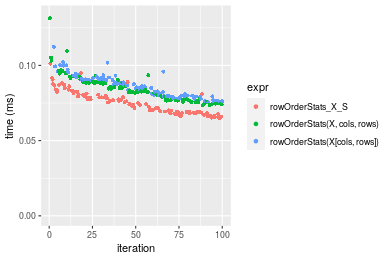

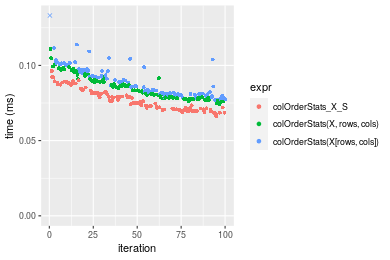

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+100x100 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	64.871	68.6835	75.26044	74.0360	80.5175	101.112
1	colOrderStats_X_S	66.108	70.7340	77.06882	75.0445	81.5830	96.272

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
1	colOrderStats_X_S	1.019069	1.029854	1.024028	1.013622	1.013233	0.9521323

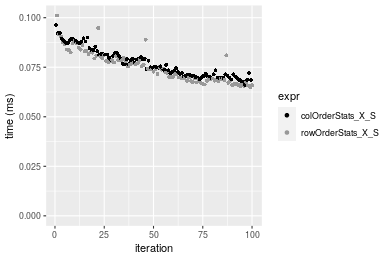

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 integer matrix

> X <- data[["1000x10"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254436 280.7    8529671 455.6  8529671 455.6
Vcells 9880250  75.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254411 280.7    8529671 455.6  8529671 455.6
Vcells 9885302  75.5   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.061762	0.0660685	0.0717479	0.0706405	0.0766410	0.094011
2	colOrderStats(X, rows, cols)	0.069930	0.0733140	0.0799615	0.0772010	0.0862880	0.106527
3	colOrderStats(X[rows, cols])	0.071619	0.0745230	0.0820215	0.0791005	0.0889015	0.145445

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.132250	1.109666	1.114479	1.092872	1.125873	1.133133
3	colOrderStats(X[rows, cols])	1.159596	1.127966	1.143190	1.119761	1.159973	1.547106

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.059928	0.0631835	0.0686435	0.0657405	0.0739390	0.094360
2	rowOrderStats(X, cols, rows)	0.069760	0.0736135	0.0809133	0.0793145	0.0871755	0.103094
3	rowOrderStats(X[cols, rows])	0.070572	0.0746240	0.0821556	0.0803925	0.0874665	0.148321

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.164063	1.165075	1.178746	1.206479	1.179019	1.092560
3	rowOrderStats(X[cols, rows])	1.177613	1.181068	1.196844	1.222876	1.182955	1.571863

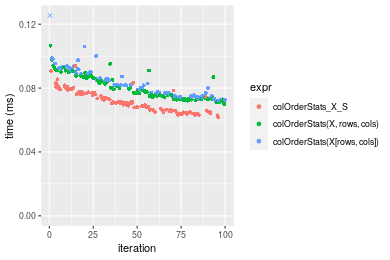

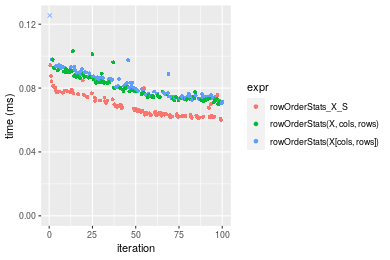

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+1000x10 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	59.928	63.1835	68.64352	65.7405	73.939	94.360
1	colOrderStats_X_S	61.762	66.0685	71.74789	70.6405	76.641	94.011

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
1	colOrderStats_X_S	1.030603	1.045661	1.045225	1.074536	1.036544	0.9963014

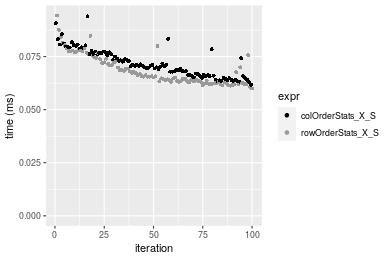

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 integer matrix

> X <- data[["10x1000"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254640 280.7    8529671 455.6  8529671 455.6
Vcells 9881190  75.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254615 280.7    8529671 455.6  8529671 455.6
Vcells 9886242  75.5   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

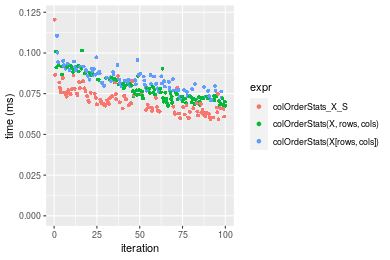

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.059233	0.0647800	0.0707883	0.0691295	0.0750850	0.120453
2	colOrderStats(X, rows, cols)	0.067620	0.0717445	0.0776411	0.0755180	0.0834125	0.101483
3	colOrderStats(X[rows, cols])	0.070892	0.0775805	0.0831609	0.0825245	0.0884600	0.110625

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.00000	1.000000	1.000000	1.000000	1.0000000
2	colOrderStats(X, rows, cols)	1.141593	1.10751	1.096807	1.092413	1.110908	0.8425112
3	colOrderStats(X[rows, cols])	1.196833	1.19760	1.174783	1.193767	1.178132	0.9184080

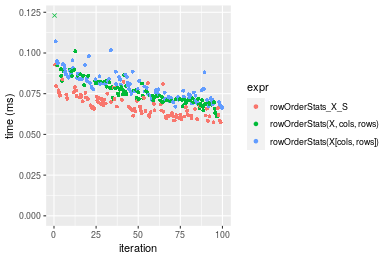

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.057303	0.0618215	0.0677530	0.0667540	0.072352	0.092838
2	rowOrderStats(X, cols, rows)	0.061081	0.0705800	0.0758625	0.0737585	0.080763	0.126372
3	rowOrderStats(X[cols, rows])	0.066314	0.0729140	0.0797251	0.0788650	0.085175	0.107101

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.065930	1.141674	1.119691	1.104930	1.116251	1.361210
3	rowOrderStats(X[cols, rows])	1.157252	1.179428	1.176701	1.181427	1.177231	1.153633

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+10x1000 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	57.303	61.8215	67.75303	66.7540	72.352	92.838
1	colOrderStats_X_S	59.233	64.7800	70.78832	69.1295	75.085	120.453

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colOrderStats_X_S	1.033681	1.047856	1.044799	1.035586	1.037774	1.297454

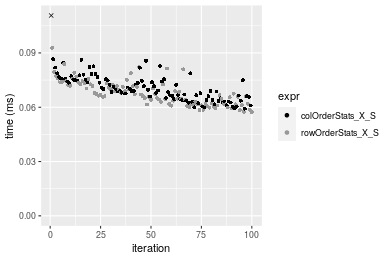

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 integer matrix

> X <- data[["100x1000"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254853 280.7    8529671 455.6  8529671 455.6
Vcells 9903940  75.6   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5254828 280.7    8529671 455.6  8529671 455.6
Vcells 9953992  76.0   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.609150	0.636613	0.6787558	0.6551865	0.6872975	1.036877
2	colOrderStats(X, rows, cols)	0.651951	0.681208	0.7173971	0.7046010	0.7290600	1.086975
3	colOrderStats(X[rows, cols])	0.676854	0.690296	0.7556894	0.7338745	0.7620855	1.069102

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.00000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.070264	1.070050	1.056930	1.07542	1.060763	1.048316
3	colOrderStats(X[rows, cols])	1.111145	1.084326	1.113345	1.12010	1.108815	1.031079

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.600200	0.6044345	0.6665140	0.6365715	0.6602375	1.011850
2	rowOrderStats(X, cols, rows)	0.657676	0.6873090	0.7158833	0.7108225	0.7160060	1.092446
3	rowOrderStats(X[cols, rows])	0.664402	0.6847415	0.7365434	0.7166075	0.7361890	1.080415

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.095761	1.137111	1.074071	1.116642	1.084467	1.079652
3	rowOrderStats(X[cols, rows])	1.106968	1.132863	1.105068	1.125730	1.115037	1.067762

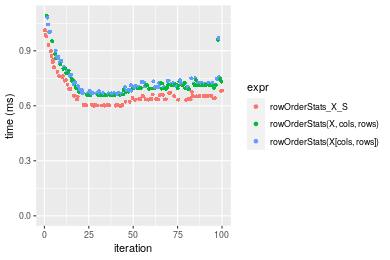

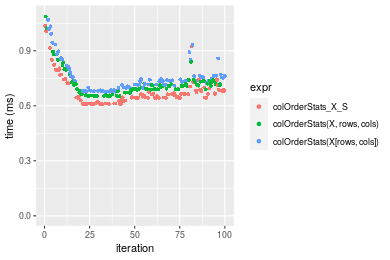

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+100x1000 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	600.20	604.4345	666.5140	636.5715	660.2375	1011.850
1	colOrderStats_X_S	609.15	636.6130	678.7558	655.1865	687.2975	1036.877

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colOrderStats_X_S	1.014912	1.053237	1.018367	1.029243	1.040985	1.024734

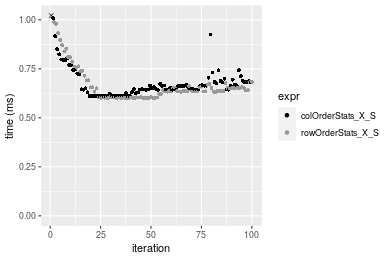

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 integer matrix

> X <- data[["1000x100"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5255063 280.7    8529671 455.6  8529671 455.6
Vcells 9904718  75.6   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5255038 280.7    8529671 455.6  8529671 455.6
Vcells 9954770  76.0   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.552532	0.5836405	0.6159517	0.599914	0.6071355	0.924861
2	colOrderStats(X, rows, cols)	0.595249	0.6134970	0.6669110	0.646752	0.6602835	0.986095
3	colOrderStats(X[rows, cols])	0.616151	0.6388200	0.6797717	0.667968	0.6744430	1.059114

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.077311	1.051156	1.082733	1.078075	1.087539	1.066209
3	colOrderStats(X[rows, cols])	1.115141	1.094544	1.103612	1.113440	1.110861	1.145160

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on integer+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.545425	0.5756490	0.6048663	0.5925385	0.595024	0.865512
2	rowOrderStats(X, cols, rows)	0.604079	0.6208395	0.6651296	0.6559925	0.658834	1.029439
3	rowOrderStats(X[cols, rows])	0.612949	0.6477925	0.6813698	0.6674090	0.674064	1.007780

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.107538	1.078504	1.099631	1.107088	1.107239	1.189399
3	rowOrderStats(X[cols, rows])	1.123801	1.125325	1.126480	1.126356	1.132835	1.164374

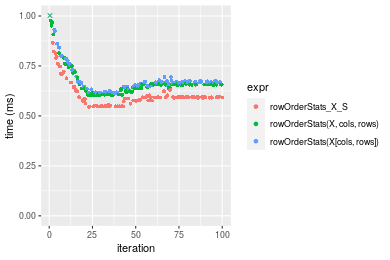

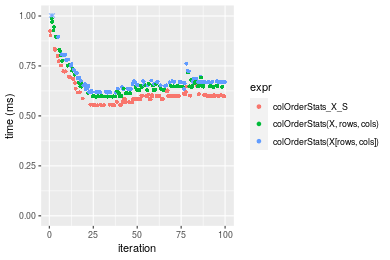

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on integer+1000x100 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	545.425	575.6490	604.8663	592.5385	595.0240	865.512
1	colOrderStats_X_S	552.532	583.6405	615.9517	599.9140	607.1355	924.861

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colOrderStats_X_S	1.01303	1.013883	1.018327	1.012447	1.020355	1.068571

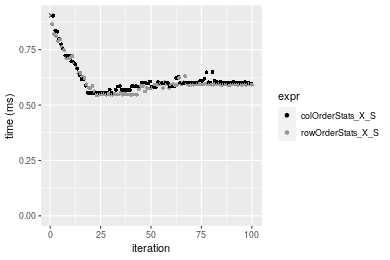

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on integer+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 double matrix

> X <- data[["10x10"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5255281 280.7    8529671 455.6  8529671 455.6
Vcells 9995847  76.3   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5255247 280.7    8529671 455.6  8529671 455.6
Vcells 9995984  76.3   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.003474	0.0035820	0.0039555	0.0036640	0.0037865	0.027975
2	colOrderStats(X, rows, cols)	0.003876	0.0040705	0.0042245	0.0041505	0.0042980	0.007222
3	colOrderStats(X[rows, cols])	0.004462	0.0046795	0.0048965	0.0047725	0.0049425	0.010880

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
2	colOrderStats(X, rows, cols)	1.115717	1.136376	1.068009	1.132778	1.135085	0.2581591
3	colOrderStats(X[rows, cols])	1.284398	1.306393	1.237886	1.302538	1.305295	0.3889187

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.003207	0.0033640	0.0034941	0.0034100	0.0035485	0.006855
2	rowOrderStats(X, cols, rows)	0.003672	0.0038470	0.0043309	0.0039245	0.0040450	0.038752
3	rowOrderStats(X[cols, rows])	0.004214	0.0044175	0.0047575	0.0045085	0.0046585	0.018309

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.144995	1.143579	1.239489	1.150880	1.139918	5.653100
3	rowOrderStats(X[cols, rows])	1.314001	1.313169	1.361601	1.322141	1.312808	2.670897

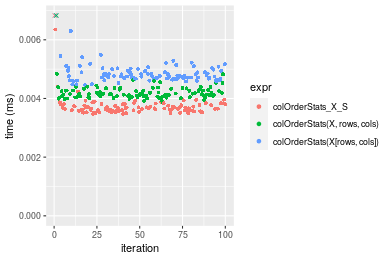

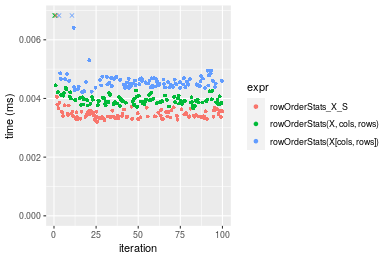

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+10x10 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	3.207	3.364	3.49407	3.410	3.5485	6.855
1	colOrderStats_X_S	3.474	3.582	3.95551	3.664	3.7865	27.975

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colOrderStats_X_S	1.083255	1.064804	1.132064	1.074487	1.067071	4.080963

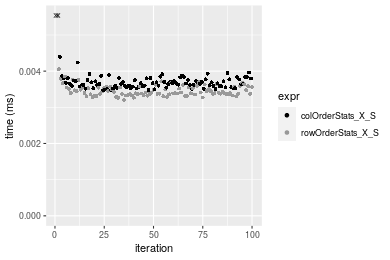

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 double matrix

> X <- data[["100x100"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255479 280.7    8529671 455.6  8529671 455.6
Vcells 10001788  76.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255454 280.7    8529671 455.6  8529671 455.6
Vcells 10011840  76.4   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.101784	0.1066380	0.1167510	0.1114085	0.126964	0.146858
2	colOrderStats(X, rows, cols)	0.108795	0.1129625	0.1218075	0.1166310	0.130235	0.159333
3	colOrderStats(X[rows, cols])	0.115087	0.1198455	0.1314851	0.1253960	0.139898	0.188071

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.068881	1.059308	1.043311	1.046877	1.025763	1.084946
3	colOrderStats(X[rows, cols])	1.130698	1.123854	1.126202	1.125552	1.101871	1.280632

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.096792	0.103745	0.1134835	0.1080105	0.1238705	0.144627
2	rowOrderStats(X, cols, rows)	0.102990	0.110213	0.1196191	0.1145410	0.1290140	0.173021
3	rowOrderStats(X[cols, rows])	0.109369	0.117146	0.1264956	0.1215265	0.1359545	0.156805

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.064034	1.062345	1.054065	1.060462	1.041523	1.196326
3	rowOrderStats(X[cols, rows])	1.129938	1.129172	1.114661	1.125136	1.097554	1.084203

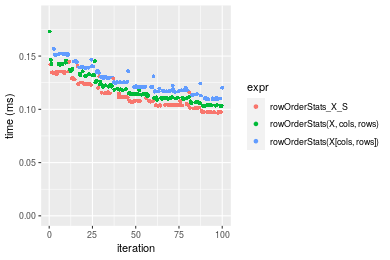

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+100x100 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	96.792	103.745	113.4835	108.0105	123.8705	144.627
1	colOrderStats_X_S	101.784	106.638	116.7510	111.4085	126.9640	146.858

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.00000	1.000000	1.000000
1	colOrderStats_X_S	1.051575	1.027886	1.028792	1.03146	1.024974	1.015426

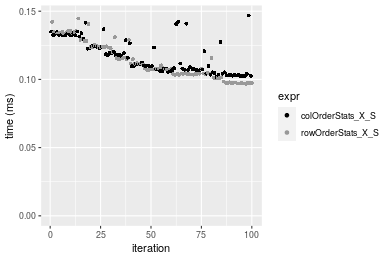

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 double matrix

> X <- data[["1000x10"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255678 280.7    8529671 455.6  8529671 455.6
Vcells 10003288  76.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255653 280.7    8529671 455.6  8529671 455.6
Vcells 10013340  76.4   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.103595	0.1116145	0.1213058	0.1154855	0.1319685	0.156049
2	colOrderStats(X, rows, cols)	0.109285	0.1198715	0.1283382	0.1239655	0.1372005	0.159964
3	colOrderStats(X[rows, cols])	0.113924	0.1202325	0.1328987	0.1286290	0.1430175	0.203368

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.054925	1.073978	1.057972	1.073429	1.039646	1.025088
3	colOrderStats(X[rows, cols])	1.099706	1.077212	1.095567	1.113811	1.083724	1.303232

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.096932	0.109479	0.1171596	0.1129365	0.118843	0.158255
2	rowOrderStats(X, cols, rows)	0.107243	0.115201	0.1271652	0.1257950	0.135004	0.165558
3	rowOrderStats(X[cols, rows])	0.110565	0.120895	0.1333708	0.1319235	0.141502	0.208647

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.106373	1.052266	1.085401	1.113856	1.135986	1.046147
3	rowOrderStats(X[cols, rows])	1.140645	1.104276	1.138368	1.168121	1.190663	1.318423

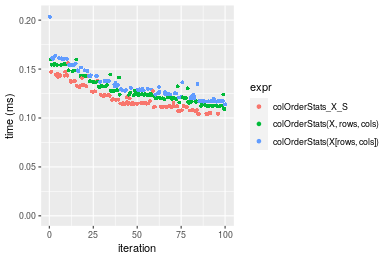

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+1000x10 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	96.932	109.4790	117.1596	112.9365	118.8430	158.255
1	colOrderStats_X_S	103.595	111.6145	121.3059	115.4855	131.9685	156.049

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.000000	1.00000	1.00000	1.000000	1.0000000
1	colOrderStats_X_S	1.068739	1.019506	1.03539	1.02257	1.110444	0.9860605

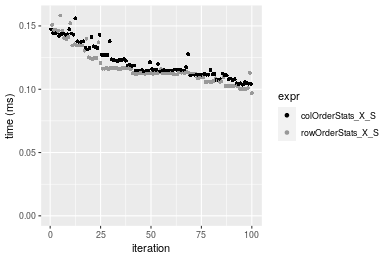

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 double matrix

> X <- data[["10x1000"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255882 280.7    8529671 455.6  8529671 455.6
Vcells 10003423  76.4   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5255857 280.7    8529671 455.6  8529671 455.6
Vcells 10013475  76.4   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.086610	0.0917185	0.1020895	0.100990	0.1133885	0.147192
2	colOrderStats(X, rows, cols)	0.094552	0.1003440	0.1084901	0.103856	0.1148965	0.137158
3	colOrderStats(X[rows, cols])	0.102439	0.1082535	0.1181137	0.115427	0.1273390	0.142336

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
2	colOrderStats(X, rows, cols)	1.091698	1.094043	1.062696	1.028379	1.013299	0.9318305
3	colOrderStats(X[rows, cols])	1.182762	1.180280	1.156962	1.142955	1.123033	0.9670091

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.086129	0.0910005	0.0997548	0.0969575	0.1063175	0.124136
2	rowOrderStats(X, cols, rows)	0.094281	0.1002510	0.1090320	0.1044765	0.1148525	0.160316
3	rowOrderStats(X[cols, rows])	0.095218	0.1040815	0.1138991	0.1096280	0.1226695	0.141255

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.00000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.094649	1.101653	1.09300	1.077549	1.080278	1.291454
3	rowOrderStats(X[cols, rows])	1.105528	1.143746	1.14179	1.130681	1.153803	1.137905

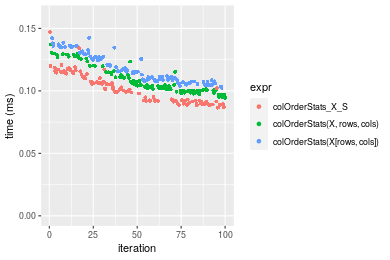

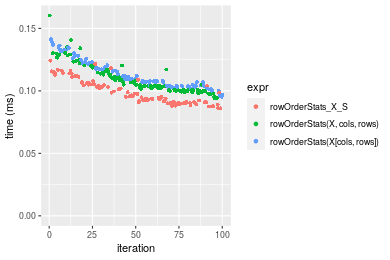

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+10x1000 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	86.129	91.0005	99.7548	96.9575	106.3175	124.136
1	colOrderStats_X_S	86.610	91.7185	102.0895	100.9900	113.3885	147.192

	expr	min	lq	mean	median	uq	max
2	rowOrderStats_X_S	1.000000	1.00000	1.000000	1.00000	1.000000	1.000000
1	colOrderStats_X_S	1.005585	1.00789	1.023404	1.04159	1.066508	1.185732

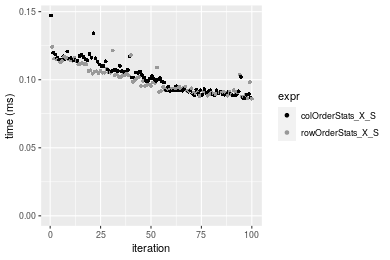

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 double matrix

> X <- data[["100x1000"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5256095 280.8    8529671 455.6  8529671 455.6
Vcells 10048999  76.7   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5256070 280.8    8529671 455.6  8529671 455.6
Vcells 10149051  77.5   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.835678	0.896137	0.9335153	0.9173680	0.9379235	1.392036
2	colOrderStats(X, rows, cols)	0.883599	0.935617	0.9722624	0.9593905	0.9864415	1.469212
3	colOrderStats(X[rows, cols])	0.937055	0.993524	1.0438145	1.0152320	1.0429670	1.485851

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.057344	1.044056	1.041507	1.045808	1.051729	1.055441
3	colOrderStats(X[rows, cols])	1.121311	1.108674	1.118155	1.106679	1.111996	1.067394

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.845700	0.892443	0.9384381	0.9193235	0.9458535	1.414871
2	rowOrderStats(X, cols, rows)	0.898562	0.952768	0.9829346	0.9772265	0.9901595	1.463661
3	rowOrderStats(X[cols, rows])	0.942543	0.995193	1.0435908	1.0233440	1.0528555	1.438909

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.062507	1.067595	1.047416	1.062984	1.046842	1.034484
3	rowOrderStats(X[cols, rows])	1.114512	1.115133	1.112051	1.113149	1.113128	1.016989

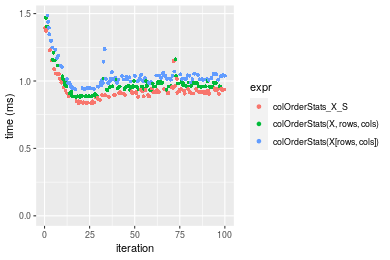

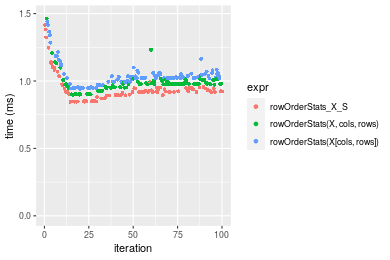

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+100x1000 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	835.678	896.137	933.5154	917.3680	937.9235	1392.036
2	rowOrderStats_X_S	845.700	892.443	938.4381	919.3235	945.8535	1414.871

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.0000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats_X_S	1.011993	0.9958779	1.005273	1.002132	1.008455	1.016404

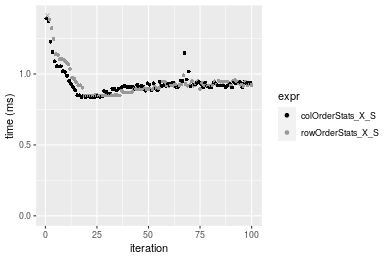

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 double matrix

> X <- data[["1000x100"]]
> rows <- sample.int(nrow(X), size = nrow(X) * 0.7)
> cols <- sample.int(ncol(X), size = ncol(X) * 0.7)
> X_S <- X[rows, cols]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5256305 280.8    8529671 455.6  8529671 455.6
Vcells 10049140  76.7   31876688 243.2 60562128 462.1
> probs <- 0.3
> which <- round(probs * nrow(X))
> colStats <- microbenchmark(colOrderStats_X_S = colOrderStats(X_S, which = which, na.rm = FALSE),
+     `colOrderStats(X, rows, cols)` = colOrderStats(X, rows = rows, cols = cols, which = which, na.rm = FALSE),
+     `colOrderStats(X[rows, cols])` = colOrderStats(X[rows, cols], which = which, na.rm = FALSE),
+     unit = "ms")
> X <- t(X)
> X_S <- t(X_S)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5256280 280.8    8529671 455.6  8529671 455.6
Vcells 10149192  77.5   31876688 243.2 60562128 462.1
> rowStats <- microbenchmark(rowOrderStats_X_S = rowOrderStats(X_S, which = which, na.rm = FALSE),
+     `rowOrderStats(X, cols, rows)` = rowOrderStats(X, rows = cols, cols = rows, which = which, na.rm = FALSE),
+     `rowOrderStats(X[cols, rows])` = rowOrderStats(X[cols, rows], which = which, na.rm = FALSE),
+     unit = "ms")

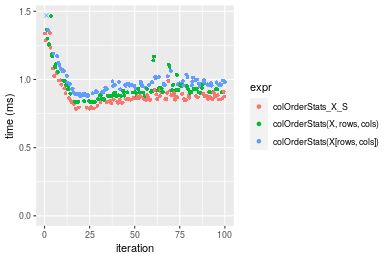

Table: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	0.783454	0.8506020	0.8879021	0.862810	0.8877890	1.340953
2	colOrderStats(X, rows, cols)	0.831492	0.8801045	0.9451680	0.906893	0.9446670	1.465697
3	colOrderStats(X[rows, cols])	0.877424	0.9275830	0.9730777	0.958752	0.9853235	1.524288

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	colOrderStats(X, rows, cols)	1.061316	1.034684	1.064496	1.051092	1.064067	1.093026
3	colOrderStats(X[rows, cols])	1.119943	1.090502	1.095929	1.111197	1.109862	1.136720

Table: Benchmarking of rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on double+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	0.796667	0.848986	0.8939137	0.8741080	0.9011475	1.206986
2	rowOrderStats(X, cols, rows)	0.858375	0.906867	0.9590285	0.9357470	0.9666135	1.492408
3	rowOrderStats(X[cols, rows])	0.895784	0.965499	1.0027349	0.9962755	1.0237755	1.412029

	expr	min	lq	mean	median	uq	max
1	rowOrderStats_X_S	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	rowOrderStats(X, cols, rows)	1.077458	1.068177	1.072842	1.070517	1.072647	1.236475
3	rowOrderStats(X[cols, rows])	1.124415	1.137238	1.121736	1.139763	1.136080	1.169880

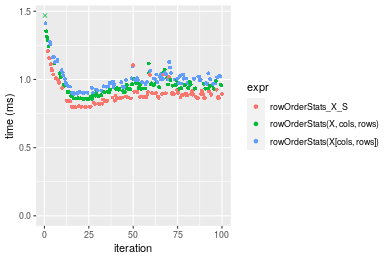

Figure: Benchmarking of colOrderStats_X_S(), colOrderStats(X, rows, cols)() and colOrderStats(X[rows, cols])() on double+1000x100 data as well as rowOrderStats_X_S(), rowOrderStats(X, cols, rows)() and rowOrderStats(X[cols, rows])() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	783.454	850.602	887.9021	862.810	887.7890	1340.953
2	rowOrderStats_X_S	796.667	848.986	893.9137	874.108	901.1475	1206.986

	expr	min	lq	mean	median	uq	max
1	colOrderStats_X_S	1.000000	1.0000000	1.000000	1.000000	1.000000	1.0000000
2	rowOrderStats_X_S	1.016865	0.9981002	1.006771	1.013094	1.015047	0.9000957

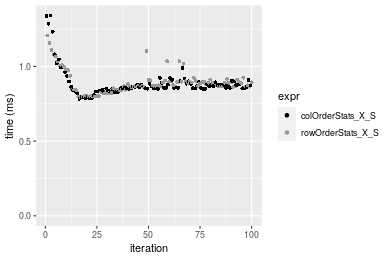

Figure: Benchmarking of colOrderStats_X_S() and rowOrderStats_X_S() on double+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.1     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rappdirs_0.3.3          startup_0.15.0          labeling_0.4.2
[67] bitops_1.0-7            base64enc_0.1-3         boot_1.3-28
[70] gtable_0.3.0            DBI_1.1.1               markdown_1.1
[73] R6_2.5.1                lpSolveAPI_5.5.2.0-17.7 rle_0.9.2
[76] dplyr_1.0.7             fastmap_1.1.0           bit_4.0.4
[79] utf8_1.2.2              parallel_4.1.1          Rcpp_1.0.7
[82] vctrs_0.3.8             png_0.1-7               DEoptimR_1.0-9
[85] tidyselect_1.1.1        xfun_0.25               coda_0.19-4

Total processing time was 25.35 secs.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('colRowOrderStats_subset')

---

Copyright Dongcan Jiang. Last updated on 2021-08-25 19:01:46 (+0200 UTC). Powered by RSP.
