matrixStats.benchmarks

anyMissing() benchmarks

This report benchmark the performance of anyMissing() against alternative methods.

Alternative methods

anyNA()
any() + is.na()

as below

> any_is.na <- function(x) {
+     any(is.na(x))
+ }

Data type “integer”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5152034 275.2    8529671 455.6  8529671 455.6
Vcells 36173384 276.0   62259153 475.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.000973	0.0009920	0.0010968	0.0010000	0.0010070	0.010426
1	anyMissing	0.002027	0.0021225	0.0022675	0.0021840	0.0022205	0.010378
3	any_is.na	0.003302	0.0034295	0.0036184	0.0034855	0.0035370	0.015873

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.0000	1.000000	1.0000000
1	anyMissing	2.083248	2.139617	2.067397	2.1840	2.205065	0.9953961
3	any_is.na	3.393628	3.457157	3.299073	3.4855	3.512413	1.5224439

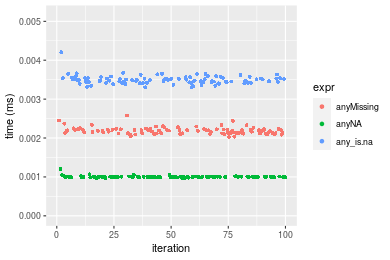

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144160 274.8    8529671 455.6  8529671 455.6
Vcells 14517313 110.8   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.008576	0.0086040	0.0086537	0.0086215	0.0086595	0.010408
1	anyMissing	0.013567	0.0136870	0.0140085	0.0138075	0.0139680	0.030265
3	any_is.na	0.023747	0.0239925	0.0247613	0.0241095	0.0242160	0.056753

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.581973	1.590772	1.618788	1.601519	1.613026	2.907859
3	any_is.na	2.769007	2.788529	2.861362	2.796439	2.796466	5.452825

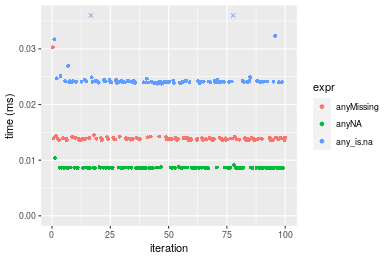

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144232 274.8    8529671 455.6  8529671 455.6
Vcells 14517873 110.8   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.061100	0.0650640	0.0726624	0.0695435	0.0806350	0.097477
1	anyMissing	0.092348	0.0985975	0.1055131	0.1019005	0.1105750	0.135588
3	any_is.na	0.168023	0.1793765	0.1980350	0.1907250	0.2174475	0.237122

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.511424	1.515392	1.452101	1.465277	1.371303	1.390974
3	any_is.na	2.749967	2.756924	2.725414	2.742528	2.696689	2.432594

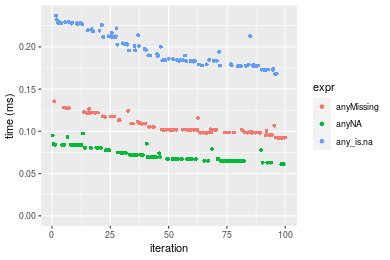

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144304 274.8    8529671 455.6  8529671 455.6
Vcells 14517922 110.8   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.514294	0.5384355	0.5798987	0.5611415	0.5893185	0.968321
1	anyMissing	0.772282	0.8070910	0.8609053	0.8199880	0.8559225	1.380374
3	any_is.na	1.474060	2.4530995	2.5763802	2.6654305	2.7283590	12.827137

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.501635	1.498956	1.484579	1.461286	1.452394	1.425534
3	any_is.na	2.866182	4.555976	4.442811	4.750015	4.629685	13.246782

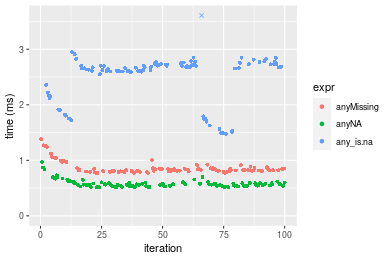

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000000 vector

> x <- data[["n = 10000000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144376 274.8    8529671 455.6  8529671 455.6
Vcells 14517970 110.8   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	5.861691	6.135744	6.230218	6.160833	6.20096	9.261701
1	anyMissing	8.480076	8.961927	9.023018	8.991722	9.06896	12.215810
3	any_is.na	26.105978	27.193877	29.577854	27.629778	27.85750	43.197121

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.446694	1.460610	1.448267	1.459498	1.462509	1.318960
3	any_is.na	4.453660	4.432042	4.747483	4.484747	4.492449	4.664059

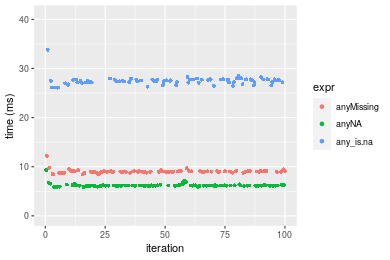

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on integer+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144458 274.8    8529671 455.6  8529671 455.6
Vcells 20074006 153.2   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.000791	0.0008255	0.0008796	0.0008440	0.0008605	0.004191
1	anyMissing	0.002090	0.0021595	0.0023204	0.0022165	0.0022610	0.011506
3	any_is.na	0.003298	0.0034420	0.0036254	0.0035160	0.0035865	0.013455

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	2.642225	2.615990	2.638021	2.626185	2.627542	2.745407
3	any_is.na	4.169406	4.169594	4.121622	4.165877	4.167926	3.210451

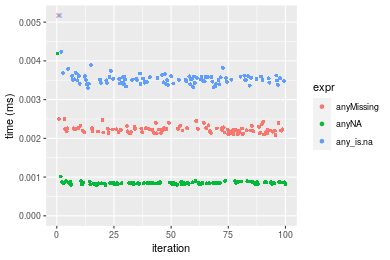

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144521 274.8    8529671 455.6  8529671 455.6
Vcells 20074038 153.2   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.006894	0.006966	0.0074654	0.0070265	0.0071065	0.039464
1	anyMissing	0.013586	0.013850	0.0145278	0.0139975	0.0141965	0.030347
3	any_is.na	0.023734	0.024044	0.0243733	0.0241790	0.0243850	0.030438

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
1	anyMissing	1.970699	1.988228	1.946028	1.992101	1.997678	0.7689793
3	any_is.na	3.442704	3.451622	3.264858	3.441116	3.431366	0.7712852

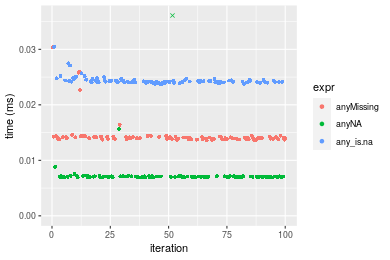

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144593 274.8    8529671 455.6  8529671 455.6
Vcells 20074387 153.2   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.052764	0.0546730	0.0616280	0.0603620	0.0675770	0.100950
1	anyMissing	0.092763	0.0986535	0.1066690	0.1019185	0.1154645	0.137157
3	any_is.na	0.172514	0.1838365	0.1995859	0.1931575	0.2137420	0.276206

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.758074	1.804428	1.730853	1.688455	1.708636	1.358663
3	any_is.na	3.269540	3.362473	3.238558	3.199985	3.162940	2.736067

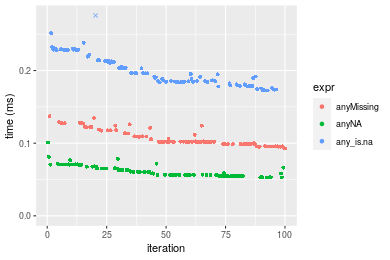

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144665 274.8    8529671 455.6  8529671 455.6
Vcells 20074796 153.2   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	0.488276	0.5865935	0.6339998	0.6204725	0.668281	0.974961
1	anyMissing	0.837390	0.8992895	0.9717933	0.9294225	0.991114	1.463979
3	any_is.na	1.683921	1.8573475	2.4499314	2.6679400	2.756080	10.234572

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.714993	1.533071	1.532797	1.497927	1.483080	1.501577
3	any_is.na	3.448707	3.166328	3.864246	4.299852	4.124133	10.497417

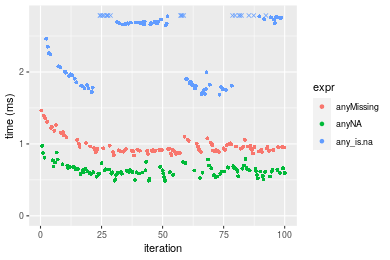

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000000 vector

> x <- data[["n = 10000000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5144737 274.8    8529671 455.6  8529671 455.6
Vcells 20074844 153.2   49807323 380.0 60562128 462.1
> stats <- microbenchmark(anyMissing = anyMissing(x), anyNA = anyNA(x), any_is.na = any_is.na(x), unit = "ms")

Table: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	anyNA	6.412402	6.679305	6.940353	6.925208	7.132852	9.111181
1	anyMissing	9.418517	9.970565	10.386660	10.412384	10.694017	13.219841
3	any_is.na	21.378771	28.010554	28.979604	28.919453	29.831470	32.894569

	expr	min	lq	mean	median	uq	max
2	anyNA	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	anyMissing	1.468797	1.492755	1.496561	1.503548	1.499262	1.450947
3	any_is.na	3.333972	4.193633	4.175523	4.175969	4.182264	3.610352

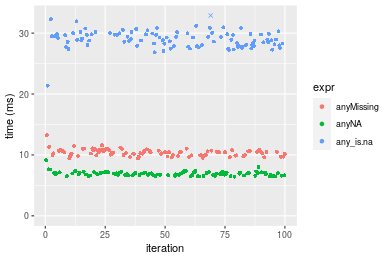

Figure: Benchmarking of anyMissing(), anyNA() and any_is.na() on double+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.1     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rappdirs_0.3.3          startup_0.15.0          labeling_0.4.2
[67] bitops_1.0-7            base64enc_0.1-3         boot_1.3-28
[70] gtable_0.3.0            DBI_1.1.1               markdown_1.1
[73] R6_2.5.1                lpSolveAPI_5.5.2.0-17.7 rle_0.9.2
[76] dplyr_1.0.7             fastmap_1.1.0           bit_4.0.4
[79] utf8_1.2.2              parallel_4.1.1          Rcpp_1.0.7
[82] vctrs_0.3.8             png_0.1-7               DEoptimR_1.0-9
[85] tidyselect_1.1.1        xfun_0.25               coda_0.19-4

Total processing time was 18.95 secs.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('anyMissing')
