matrixStats.benchmarks


sum2() benchmarks on subsetted computation

This report benchmark the performance of sum2() on subsetted computation.

Data type “integer”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5351096 285.8    7916910 422.9  7916910 422.9
Vcells 17018782 129.9   35130986 268.1 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.004058 0.004164 0.0043724 0.0042300 0.0043345 0.007633
2 sum2(x, idxs) 0.005715 0.005797 0.0062388 0.0058745 0.0060165 0.015764
3 sum2(x[idxs]) 0.006886 0.007081 0.0093681 0.0071920 0.0072985 0.212567
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 1.408329 1.392171 1.426875 1.388771 1.388049 2.065243
3 sum2(x[idxs]) 1.696895 1.700528 2.142571 1.700236 1.683816 27.848421

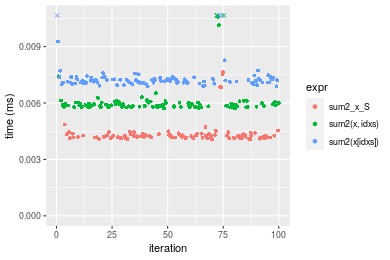

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349070 285.7    7916910 422.9  7916910 422.9
Vcells 15889485 121.3   35130986 268.1 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.014937 0.0150565 0.0157990 0.015211 0.0155210 0.036959
2 sum2(x, idxs) 0.029887 0.0301085 0.0312808 0.030231 0.0307245 0.052853
3 sum2(x[idxs]) 0.037243 0.0377700 0.0395601 0.038266 0.0392410 0.073865
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 2.000870 1.999701 1.979917 1.987443 1.979544 1.430044
3 sum2(x[idxs]) 2.493339 2.508551 2.503953 2.515679 2.528252 1.998566

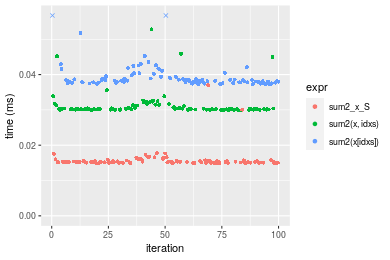

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349142 285.7    7916910 422.9  7916910 422.9
Vcells 15953045 121.8   35130986 268.1 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.074582 0.0770210 0.0935544 0.0942520 0.1041050 0.153356
2 sum2(x, idxs) 0.173005 0.1877705 0.2107951 0.2054650 0.2262850 0.305723
3 sum2(x[idxs]) 0.225503 0.2491455 0.2874428 0.2861915 0.3112985 0.453296
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 2.319662 2.437913 2.253183 2.179954 2.173623 1.993551
3 sum2(x[idxs]) 3.023558 3.234774 3.072468 3.036450 2.990236 2.955841

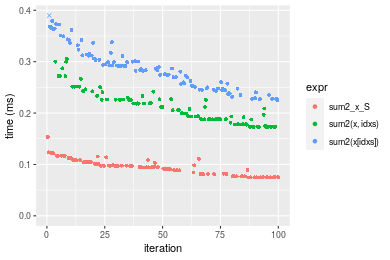

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349214 285.7    7916910 422.9  7916910 422.9
Vcells 16583094 126.6   35130986 268.1 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.899186 0.955913 0.9781089 0.9745195 0.9910775 1.247664
2 sum2(x, idxs) 2.484263 2.729147 2.9763069 2.9132910 3.0965315 5.170635
3 sum2(x[idxs]) 3.485286 4.653993 5.0484895 5.0643155 5.2687700 18.574634
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.00000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 2.762791 2.855016 3.04292 2.989464 3.124409 4.144253
3 sum2(x[idxs]) 3.876046 4.868637 5.16148 5.196731 5.316204 14.887529

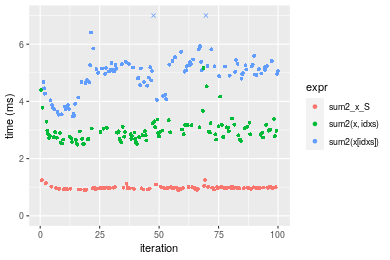

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000000 vector

> x <- data[["n = 10000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349286 285.7    7916910 422.9  7916910 422.9
Vcells 22883142 174.6   35130986 268.1 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 10.12059 12.52840 14.53045 13.35103 15.23759 21.53914
2 sum2(x, idxs) 84.54040 99.31616 112.45785 113.54498 123.88016 146.49164
3 sum2(x[idxs]) 121.28929 133.40567 149.59686 148.72843 164.35145 190.94653
  expr min lq mean median uq max
1 sum2_x_S 1.00000 1.000000 1.00000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 8.35331 7.927284 7.73946 8.504586 8.129906 6.801184
3 sum2(x[idxs]) 11.98441 10.648263 10.29540 11.139848 10.785922 8.865096

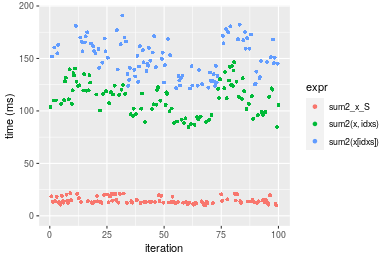

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on integer+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rvector <- function(n, mode = c("logical", "double", "integer"), range = c(-100, +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     x
+ }
> rvectors <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rvector(n = scale * 100, ...)
+     data[[2]] <- rvector(n = scale * 1000, ...)
+     data[[3]] <- rvector(n = scale * 10000, ...)
+     data[[4]] <- rvector(n = scale * 1e+05, ...)
+     data[[5]] <- rvector(n = scale * 1e+06, ...)
+     names(data) <- sprintf("n = %d", sapply(data, FUN = length))
+     data
+ }
> data <- rvectors(mode = mode)

Results

n = 1000 vector

> x <- data[["n = 1000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349358 285.7    7916910 422.9  7916910 422.9
Vcells 21440297 163.6   42237183 322.3 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.004073 0.0041675 0.0043044 0.0042630 0.0043295 0.005104
2 sum2(x, idxs) 0.005691 0.0058320 0.0060248 0.0059345 0.0060655 0.011282
3 sum2(x[idxs]) 0.006600 0.0067975 0.0072208 0.0069115 0.0070985 0.030047
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 1.397250 1.399400 1.399687 1.392095 1.400970 2.210423
3 sum2(x[idxs]) 1.620427 1.631074 1.677545 1.621276 1.639566 5.886951

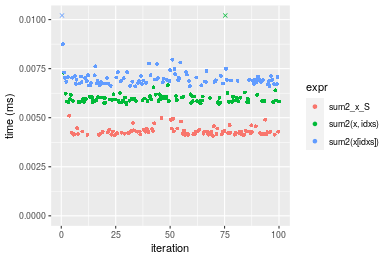

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 10000 vector

> x <- data[["n = 10000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349430 285.7    7916910 422.9  7916910 422.9
Vcells 21449794 163.7   42237183 322.3 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.014450 0.0151475 0.0155525 0.0153985 0.0156285 0.030081
2 sum2(x, idxs) 0.028984 0.0294010 0.0301643 0.0304145 0.0305615 0.032902
3 sum2(x[idxs]) 0.033606 0.0353325 0.0364819 0.0360850 0.0366540 0.074489
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.00000 1.000000 1.000000
2 sum2(x, idxs) 2.005813 1.940980 1.939518 1.97516 1.955498 1.093780
3 sum2(x[idxs]) 2.325675 2.332563 2.345728 2.34341 2.345331 2.476281

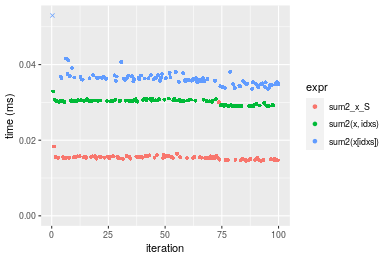

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 100000 vector

> x <- data[["n = 100000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349502 285.7    7916910 422.9  7916910 422.9
Vcells 21544662 164.4   42237183 322.3 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 100000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 0.074623 0.0772380 0.0908662 0.0887490 0.0977030 0.165804
2 sum2(x, idxs) 0.183186 0.1884210 0.2149429 0.2049695 0.2333605 0.293395
3 sum2(x[idxs]) 0.262342 0.2864695 0.3175127 0.3174385 0.3360615 0.568722
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 2.454820 2.439486 2.365488 2.309541 2.388468 1.769529
3 sum2(x[idxs]) 3.515565 3.708919 3.494289 3.576812 3.439623 3.430086

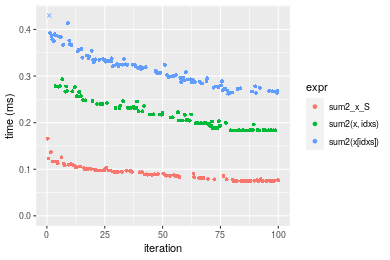

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 100000 data. Outliers are displayed as crosses. Times are in milliseconds.

n = 1000000 vector

> x <- data[["n = 1000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349574 285.7    7916910 422.9  7916910 422.9
Vcells 22490092 171.6   42237183 322.3 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 1.237533 1.342108 1.439008 1.437491 1.507708 1.864939
2 sum2(x, idxs) 5.983188 6.391203 6.724696 6.551378 6.876295 9.803509
3 sum2(x[idxs]) 7.418274 8.139433 9.955356 10.303071 10.981101 20.978886
  expr min lq mean median uq max
1 sum2_x_S 1.000000 1.000000 1.000000 1.000000 1.000000 1.000000
2 sum2(x, idxs) 4.834771 4.762065 4.673146 4.557510 4.560760 5.256745
3 sum2(x[idxs]) 5.994405 6.064666 6.918207 7.167402 7.283308 11.249100

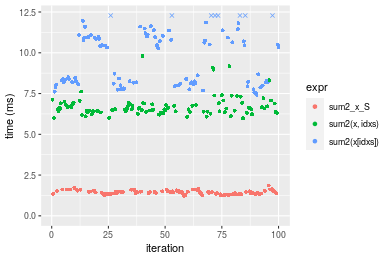

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 1000000 data. Outliers are displayed as crosses. Times are in milliseconds.

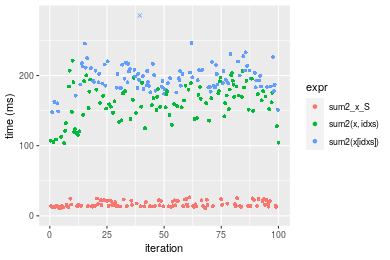

n = 10000000 vector

> x <- data[["n = 10000000"]]
> idxs <- sample.int(length(x), size = length(x) * 0.7)
> x_S <- x[idxs]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5349646 285.8    7916910 422.9  7916910 422.9
Vcells 31940140 243.7   50764619 387.4 94934136 724.3
> stats <- microbenchmark(sum2_x_S = sum2(x_S), `sum2(x, idxs)` = sum2(x, idxs = idxs), `sum2(x[idxs])` = sum2(x[idxs]),
+     unit = "ms")

Table: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

  expr min lq mean median uq max
1 sum2_x_S 10.43411 13.53736 16.58253 14.54233 20.96135 26.28596
2 sum2(x, idxs) 103.56397 145.32464 161.57033 164.40443 180.04523 221.33732
3 sum2(x[idxs]) 147.64456 184.61754 200.38570 194.71552 207.89210 586.47072
  expr min lq mean median uq max
1 sum2_x_S 1.00000 1.00000 1.000000 1.00000 1.000000 1.000000
2 sum2(x, idxs) 9.92552 10.73508 9.743407 11.30523 8.589392 8.420363
3 sum2(x[idxs]) 14.15018 13.63763 12.084146 13.38957 9.917879 22.311177

Figure: Benchmarking of sum2_x_S(), sum2(x, idxs)() and sum2(x[idxs])() on double+n = 10000000 data. Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.0     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rstudioapi_0.13         rappdirs_0.3.3          startup_0.15.0-9000
[67] labeling_0.4.2          bitops_1.0-7            base64enc_0.1-3
[70] boot_1.3-28             gtable_0.3.0            DBI_1.1.1
[73] markdown_1.1            R6_2.5.1                lpSolveAPI_5.5.2.0-17.7
[76] rle_0.9.2               dplyr_1.0.7             fastmap_1.1.0
[79] bit_4.0.4               utf8_1.2.2              parallel_4.1.1
[82] Rcpp_1.0.7              vctrs_0.3.8             png_0.1-7
[85] DEoptimR_1.0-9          tidyselect_1.1.1        xfun_0.25
[88] coda_0.19-4

Total processing time was 1.42 mins.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('sum2_subset')

Copyright Dongcan Jiang. Last updated on 2021-08-25 22:48:06 (+0200 UTC). Powered by RSP.
