matrixStats.benchmarks

---

colRanks() and rowRanks() benchmarks

This report benchmark the performance of colRanks() and rowRanks() against alternative methods.

Alternative methods

• apply() + rank()

Data type “integer”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 integer matrix

> X <- data[["10x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298850 283.0    7916910 422.9  7916910 422.9
Vcells 10532033  80.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298445 283.0    7916910 422.9  7916910 422.9
Vcells 10531056  80.4   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.009407	0.011369	0.0169393	0.014047	0.0166995	0.149608
2	apply+rank	0.183609	0.200873	0.2411812	0.220219	0.2415300	0.746317

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.0000	1.00000	1.000000
2	apply+rank	19.51834	17.66848	14.23796	15.6773	14.46331	4.988483

Table: Benchmarking of rowRanks() and apply+rank() on integer+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.005494	0.0063860	0.0086414	0.0083770	0.009419	0.034827
2	apply+rank	0.183176	0.1924125	0.2101817	0.2055875	0.218420	0.375835

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.0000	1.00000	1.00000	1.0000	1.0000	1.00000
2	apply+rank	33.3411	30.13036	24.32254	24.5419	23.1893	10.79148

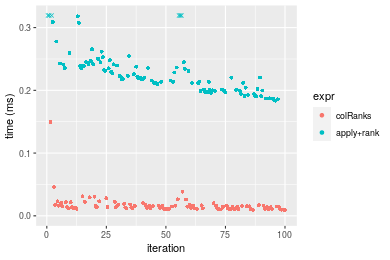

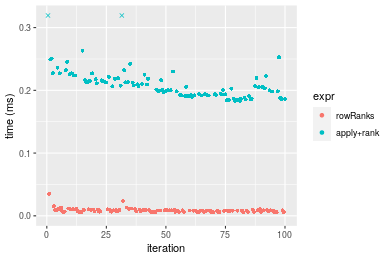

Figure: Benchmarking of colRanks() and apply+rank() on integer+10x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	5.494	6.386	8.64144	8.377	9.4190	34.827
1	colRanks	9.407	11.369	16.93931	14.047	16.6995	149.608

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.712231	1.780301	1.960242	1.676853	1.772959	4.295748

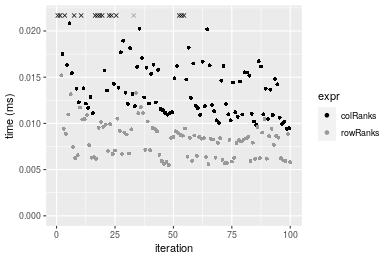

Figure: Benchmarking of colRanks() and rowRanks() on integer+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 integer matrix

> X <- data[["100x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5297005 282.9    7916910 422.9  7916910 422.9
Vcells 10147558  77.5   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5296999 282.9    7916910 422.9  7916910 422.9
Vcells 10152601  77.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.322609	0.3619875	0.4050859	0.389438	0.4254825	0.731030
2	apply+rank	1.850169	2.0953320	2.4162842	2.296550	2.5052410	4.056521

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.000000	1.000000	1.000	1.000000
2	apply+rank	5.73502	5.78841	5.964868	5.897088	5.888	5.549049

Table: Benchmarking of rowRanks() and apply+rank() on integer+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.310151	0.349815	0.3852806	0.3686975	0.403289	0.562923
2	apply+rank	1.831974	2.042712	2.3853072	2.2199200	2.495522	4.990405

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.906716	5.839408	6.191092	6.020979	6.187925	8.865165

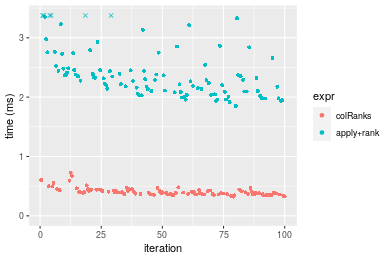

Figure: Benchmarking of colRanks() and apply+rank() on integer+100x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	310.151	349.8150	385.2806	368.6975	403.2890	562.923
1	colRanks	322.609	361.9875	405.0859	389.4380	425.4825	731.030

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.040167	1.034797	1.051405	1.056253	1.055031	1.298632

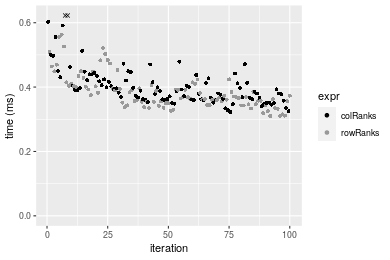

Figure: Benchmarking of colRanks() and rowRanks() on integer+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 integer matrix

> X <- data[["1000x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5297747 283.0    7916910 422.9  7916910 422.9
Vcells 10151091  77.5   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5297729 283.0    7916910 422.9  7916910 422.9
Vcells 10156114  77.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.393898	0.4494935	0.5064234	0.481463	0.5305685	0.812872
2	apply+rank	1.089100	1.2463020	1.4129721	1.361967	1.5017565	2.123362

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.0000	1.000000	1.000000	1.000000
2	apply+rank	2.764929	2.772681	2.7901	2.828809	2.830467	2.612173

Table: Benchmarking of rowRanks() and apply+rank() on integer+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.379688	0.397256	0.461763	0.4435065	0.4986095	0.773803
2	apply+rank	1.098332	1.156041	1.350847	1.2794880	1.4695510	2.213816

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.892722	2.910064	2.925411	2.884936	2.947298	2.860956

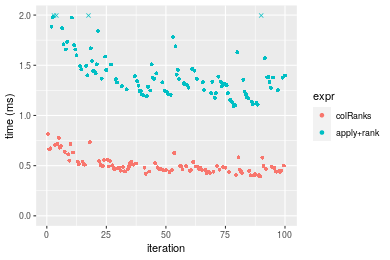

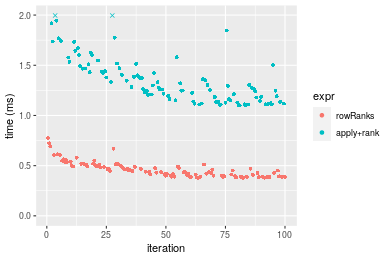

Figure: Benchmarking of colRanks() and apply+rank() on integer+1000x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	379.688	397.2560	461.7630	443.5065	498.6095	773.803
1	colRanks	393.898	449.4935	506.4234	481.4630	530.5685	812.872

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
1	colRanks	1.037425	1.131496	1.096717	1.085583	1.064096	1.05049

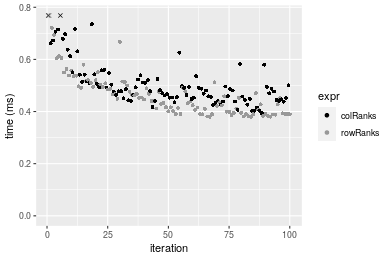

Figure: Benchmarking of colRanks() and rowRanks() on integer+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 integer matrix

> X <- data[["10x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5297923 283.0    7916910 422.9  7916910 422.9
Vcells 10151754  77.5   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5297917 283.0    7916910 422.9  7916910 422.9
Vcells 10156797  77.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.204627	0.2212945	0.2513058	0.2471305	0.2708045	0.328413
2	apply+rank	11.934508	12.5422885	14.3525436	13.4208540	15.5776350	24.846604

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	58.32323	56.67691	57.11187	54.30675	57.52355	75.65658

Table: Benchmarking of rowRanks() and apply+rank() on integer+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.185139	0.197105	0.2259436	0.220442	0.239653	0.400474
2	apply+rank	12.079408	12.677535	14.7159397	13.304649	15.878499	30.775770

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	65.24508	64.31869	65.13104	60.35442	66.25621	76.84836

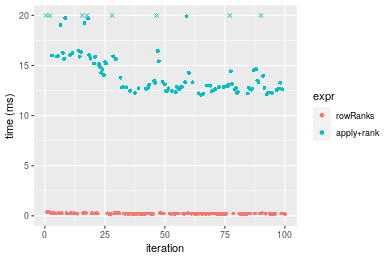

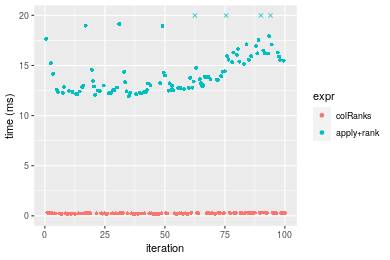

Figure: Benchmarking of colRanks() and apply+rank() on integer+10x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	185.139	197.1050	225.9436	220.4420	239.6530	400.474
1	colRanks	204.627	221.2945	251.3058	247.1305	270.8045	328.413

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.00000	1.000000	1.000000	1.0000000
1	colRanks	1.105261	1.122724	1.11225	1.121068	1.129986	0.8200607

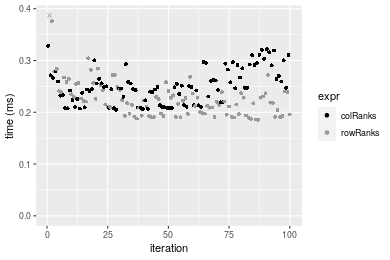

Figure: Benchmarking of colRanks() and rowRanks() on integer+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 integer matrix

> X <- data[["100x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298119 283.0    7916910 422.9  7916910 422.9
Vcells 10152266  77.5   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298101 283.0    7916910 422.9  7916910 422.9
Vcells 10202289  77.9   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.159446	3.287911	3.440933	3.392974	3.509068	4.305031
2	apply+rank	18.490284	19.522363	21.161900	19.822294	20.489353	39.063513

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.852382	5.937618	6.150047	5.842158	5.838973	9.073921

Table: Benchmarking of rowRanks() and apply+rank() on integer+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.056219	3.24029	3.38946	3.322281	3.483862	4.248177
2	apply+rank	18.654637	19.91694	21.67497	20.461286	21.207750	38.361005

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	6.103829	6.146654	6.394815	6.158807	6.087425	9.029992

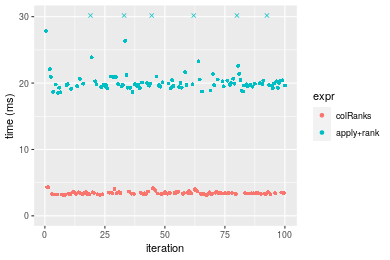

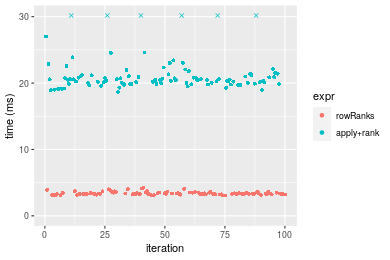

Figure: Benchmarking of colRanks() and apply+rank() on integer+100x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	3.056219	3.240290	3.389460	3.322281	3.483862	4.248177
1	colRanks	3.159446	3.287911	3.440933	3.392974	3.509068	4.305031

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.033776	1.014696	1.015186	1.021279	1.007235	1.013383

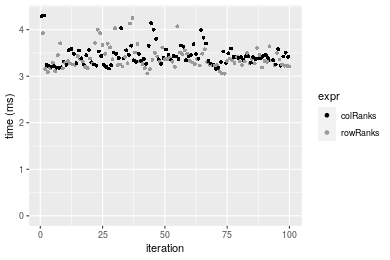

Figure: Benchmarking of colRanks() and rowRanks() on integer+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 integer matrix

> X <- data[["1000x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298311 283.0    7916910 422.9  7916910 422.9
Vcells 10152836  77.5   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298293 283.0    7916910 422.9  7916910 422.9
Vcells 10202859  77.9   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on integer+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.896785	4.112804	4.489607	4.253279	4.42249	13.67832
2	apply+rank	10.729543	11.316907	11.926806	11.620297	11.98809	22.93321

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.00000	1.00000	1.00000
2	apply+rank	2.753435	2.751628	2.656537	2.73208	2.71071	1.67661

Table: Benchmarking of rowRanks() and apply+rank() on integer+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.780137	4.021685	4.166701	4.130434	4.268876	4.986526
2	apply+rank	10.752102	11.378576	12.114239	11.586593	12.095277	24.792563

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.844368	2.829306	2.907393	2.805175	2.833364	4.971911

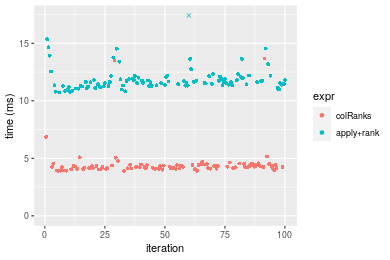

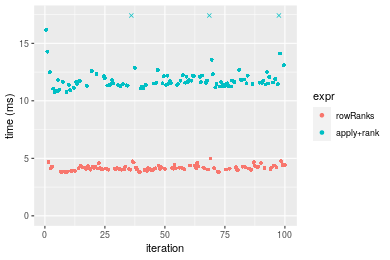

Figure: Benchmarking of colRanks() and apply+rank() on integer+1000x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on integer+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	3.780137	4.021685	4.166701	4.130434	4.268876	4.986526
1	colRanks	3.896785	4.112804	4.489607	4.253279	4.422490	13.678319

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.030858	1.022657	1.077497	1.029741	1.035985	2.743056

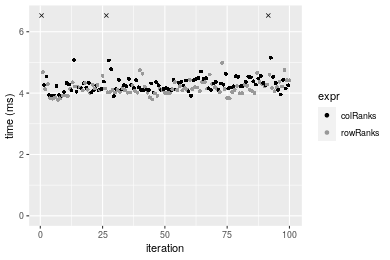

Figure: Benchmarking of colRanks() and rowRanks() on integer+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 double matrix

> X <- data[["10x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298499 283.0    7916910 422.9  7916910 422.9
Vcells 10269166  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298484 283.0    7916910 422.9  7916910 422.9
Vcells 10269294  78.4   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.009106	0.0104045	0.0137578	0.0129245	0.0147160	0.046790
2	apply+rank	0.179542	0.1883375	0.2027790	0.1987100	0.2104405	0.363424

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	19.71689	18.10154	14.73924	15.37468	14.30012	7.76713

Table: Benchmarking of rowRanks() and apply+rank() on double+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.005750	0.0075175	0.0115225	0.0098755	0.0131015	0.027957
2	apply+rank	0.194529	0.2061155	0.2541952	0.2249310	0.2607190	0.452338

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	33.83113	27.41809	22.06073	22.77667	19.89994	16.17978

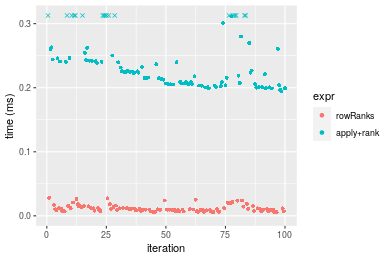

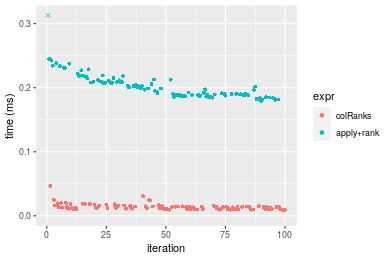

Figure: Benchmarking of colRanks() and apply+rank() on double+10x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	5.750	7.5175	11.52252	9.8755	13.1015	27.957
1	colRanks	9.106	10.4045	13.75777	12.9245	14.7160	46.790

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.00000	1.000000	1.00000	1.000000
1	colRanks	1.583652	1.384037	1.19399	1.308744	1.12323	1.673642

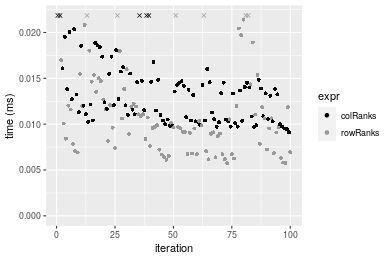

Figure: Benchmarking of colRanks() and rowRanks() on double+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 double matrix

> X <- data[["100x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298679 283.0    7916910 422.9  7916910 422.9
Vcells 10269278  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298673 283.0    7916910 422.9  7916910 422.9
Vcells 10279321  78.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.333789	0.3567785	0.390592	0.37357	0.4011065	0.677455
2	apply+rank	1.816022	1.9441860	2.177894	2.03974	2.2920700	3.680256

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.00000	1.00000	1.000000	1.000000	1.000000
2	apply+rank	5.440629	5.44928	5.57588	5.460127	5.714368	5.432473

Table: Benchmarking of rowRanks() and apply+rank() on double+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.327560	0.3391095	0.3658859	0.347917	0.3702355	0.528486
2	apply+rank	1.826432	1.8880900	2.0880218	1.944974	2.0914905	3.663260

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.57587	5.567789	5.706757	5.590339	5.649082	6.931612

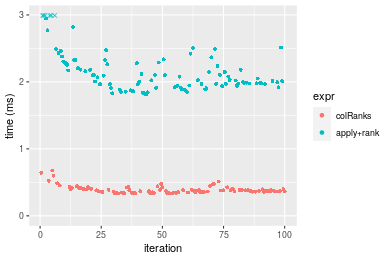

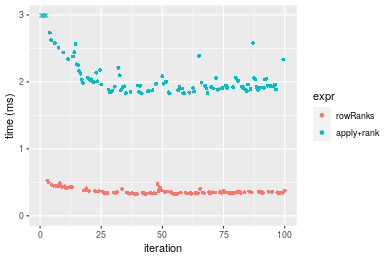

Figure: Benchmarking of colRanks() and apply+rank() on double+100x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	327.560	339.1095	365.8859	347.917	370.2355	528.486
1	colRanks	333.789	356.7785	390.5920	373.570	401.1065	677.455

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.019016	1.052104	1.067524	1.073733	1.083382	1.281879

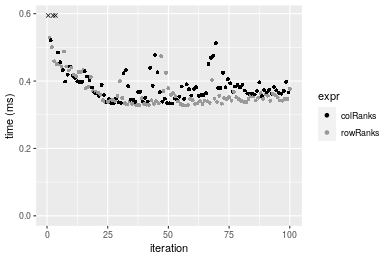

Figure: Benchmarking of colRanks() and rowRanks() on double+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 double matrix

> X <- data[["1000x10"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298881 283.0    7916910 422.9  7916910 422.9
Vcells 10270178  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5298863 283.0    7916910 422.9  7916910 422.9
Vcells 10280201  78.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.455754	0.466490	0.5398868	0.510822	0.586950	1.115802
2	apply+rank	0.999848	1.019635	1.2088598	1.084075	1.314417	2.903401

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.193833	2.185761	2.239099	2.122216	2.239402	2.602076

Table: Benchmarking of rowRanks() and apply+rank() on double+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.450257	0.4615145	0.5276687	0.4965475	0.571033	0.797745
2	apply+rank	1.000383	1.0199325	1.1647766	1.0819950	1.288410	2.008883

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.221804	2.209969	2.207401	2.179036	2.256279	2.518202

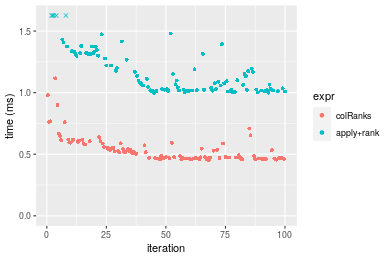

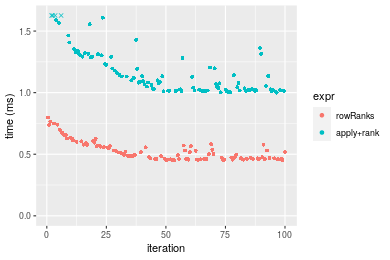

Figure: Benchmarking of colRanks() and apply+rank() on double+1000x10 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	450.257	461.5145	527.6687	496.5475	571.033	797.745
1	colRanks	455.754	466.4900	539.8868	510.8220	586.950	1115.802

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.012209	1.010781	1.023155	1.028747	1.027874	1.398695

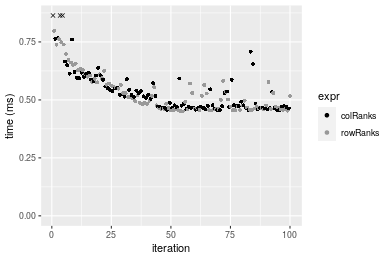

Figure: Benchmarking of colRanks() and rowRanks() on double+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 double matrix

> X <- data[["10x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299057 283.1    7916910 422.9  7916910 422.9
Vcells 10271188  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299051 283.0    7916910 422.9  7916910 422.9
Vcells 10281231  78.5   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	0.21602	0.2321205	0.2636814	0.265966	0.2852145	0.363903
2	apply+rank	12.03840	12.9308615	13.8937154	13.319688	13.9276565	21.557732

	expr	min	lq	mean	median	uq	max
1	colRanks	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+rank	55.72817	55.70754	52.69129	50.08041	48.83222	59.24032

Table: Benchmarking of rowRanks() and apply+rank() on double+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	0.210906	0.2227695	0.2416568	0.240301	0.2516995	0.370502
2	apply+rank	12.049765	13.0592865	14.0012792	13.326721	14.0300215	20.635371

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.00000	1.00000	1.0000	1.00000	1.00000	1.00000
2	apply+rank	57.13334	58.62242	57.9387	55.45845	55.74116	55.69571

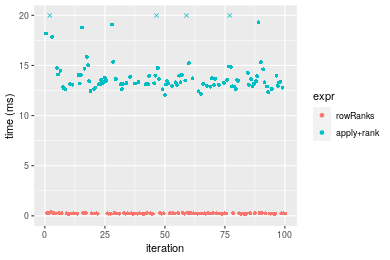

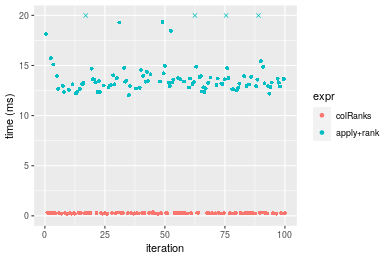

Figure: Benchmarking of colRanks() and apply+rank() on double+10x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	210.906	222.7695	241.6568	240.301	251.6995	370.502
1	colRanks	216.020	232.1205	263.6814	265.966	285.2145	363.903

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.000000	1.000000	1.00000	1.000000	1.000000	1.000000
1	colRanks	1.024248	1.041976	1.09114	1.106804	1.133155	0.982189

Figure: Benchmarking of colRanks() and rowRanks() on double+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 double matrix

> X <- data[["100x1000"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299253 283.1    7916910 422.9  7916910 422.9
Vcells 10271329  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299235 283.1    7916910 422.9  7916910 422.9
Vcells 10371352  79.2   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.285252	3.506241	3.670946	3.583366	3.707399	5.169157
2	apply+rank	18.454023	19.448328	21.572077	20.022094	20.704565	46.180803

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.00000	1.000000
2	apply+rank	5.617232	5.546775	5.876436	5.587509	5.58466	8.933914

Table: Benchmarking of rowRanks() and apply+rank() on double+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	3.285173	3.500585	3.633387	3.599173	3.688722	4.477582
2	apply+rank	18.254225	19.470502	21.356553	19.977590	20.607648	40.248971

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	5.556549	5.562071	5.877863	5.550606	5.586664	8.988997

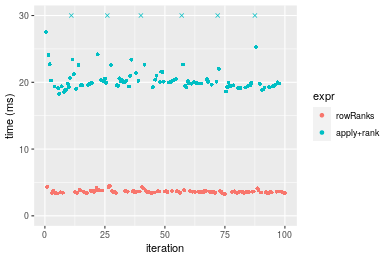

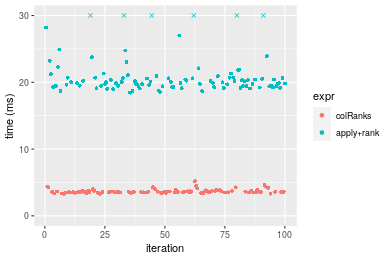

Figure: Benchmarking of colRanks() and apply+rank() on double+100x1000 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	3.285252	3.506241	3.670946	3.583366	3.707399	5.169157
2	rowRanks	3.285173	3.500585	3.633387	3.599173	3.688722	4.477582

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.0000000	1.0000000	1.000000	1.0000000	1.0000000
2	rowRanks	0.999976	0.9983869	0.9897687	1.004411	0.9949621	0.8662113

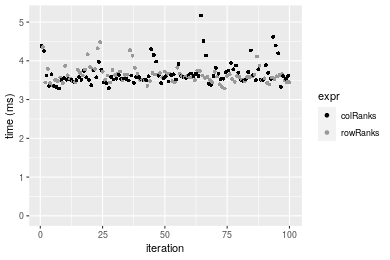

Figure: Benchmarking of colRanks() and rowRanks() on double+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 double matrix

> X <- data[["1000x100"]]
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299445 283.1    7916910 422.9  7916910 422.9
Vcells 10272551  78.4   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colRanks = colRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 2L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")
> X <- t(X)
> gc()
           used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells  5299427 283.1    7916910 422.9  7916910 422.9
Vcells 10372574  79.2   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowRanks = rowRanks(X, na.rm = FALSE), `apply+rank` = apply(X, MARGIN = 1L,
+     FUN = rank, na.last = "keep", ties.method = "max"), unit = "ms")

Table: Benchmarking of colRanks() and apply+rank() on double+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colRanks	4.525901	4.680152	5.012956	4.820777	5.161131	7.241011
2	apply+rank	9.728864	10.086996	11.287305	10.335541	11.802605	22.438979

	expr	min	lq	mean	median	uq	max
1	colRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.149597	2.155271	2.251626	2.143958	2.286825	3.098874

Table: Benchmarking of rowRanks() and apply+rank() on double+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowRanks	4.496450	4.635986	4.855442	4.706527	4.922472	6.063016
2	apply+rank	9.869555	10.156695	10.876344	10.396869	10.573709	23.781323

	expr	min	lq	mean	median	uq	max
1	rowRanks	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+rank	2.194966	2.190838	2.240032	2.209032	2.148049	3.922359

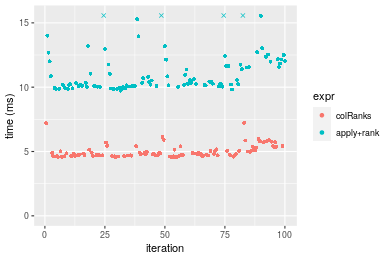

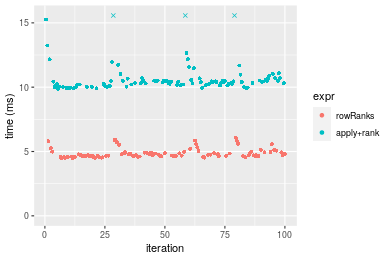

Figure: Benchmarking of colRanks() and apply+rank() on double+1000x100 data as well as rowRanks() and apply+rank() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colRanks() and rowRanks() on double+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowRanks	4.496450	4.635986	4.855442	4.706527	4.922472	6.063016
1	colRanks	4.525901	4.680152	5.012956	4.820777	5.161131	7.241011

	expr	min	lq	mean	median	uq	max
2	rowRanks	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colRanks	1.00655	1.009527	1.032441	1.024275	1.048484	1.194292

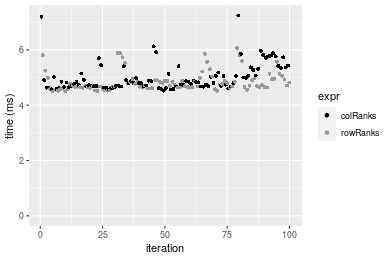

Figure: Benchmarking of colRanks() and rowRanks() on double+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.0     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rstudioapi_0.13         rappdirs_0.3.3          startup_0.15.0
[67] labeling_0.4.2          bitops_1.0-7            base64enc_0.1-3
[70] boot_1.3-28             gtable_0.3.0            DBI_1.1.1
[73] markdown_1.1            R6_2.5.1                lpSolveAPI_5.5.2.0-17.7
[76] rle_0.9.2               dplyr_1.0.7             fastmap_1.1.0
[79] bit_4.0.4               utf8_1.2.2              parallel_4.1.1
[82] Rcpp_1.0.7              vctrs_0.3.8             png_0.1-7
[85] DEoptimR_1.0-9          tidyselect_1.1.1        xfun_0.25
[88] coda_0.19-4

Total processing time was 48.36 secs.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('colRanks')

---

Copyright Henrik Bengtsson. Last updated on 2021-08-25 22:29:07 (+0200 UTC). Powered by RSP.
