colMads() and rowMads() benchmarks
This report benchmark the performance of colMads() and rowMads() against alternative methods.
Alternative methods
- apply() + mad()
- colMads2() and rowMads2()
where rowMads2()
and colMads2()
are:
> rowMads2 <- function(x, const = 1.4826, na.rm = FALSE) {
+ mu <- rowMedians(x, na.rm = na.rm)
+ x <- abs(x - mu)
+ mad <- rowMedians(x, na.rm = FALSE)
+ const * mad
+ }
> colMads2 <- function(x, const = 1.4826, na.rm = FALSE) {
+ mu <- colMedians(x, na.rm = na.rm)
+ x <- abs(x - mu)
+ mad <- colMedians(x, na.rm = FALSE)
+ const * mad
+ }
Data type “integer”
Data
> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+ +100), na_prob = 0) {
+ mode <- match.arg(mode)
+ n <- nrow * ncol
+ if (mode == "logical") {
+ x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+ } else if (mode == "index") {
+ x <- seq_len(n)
+ mode <- "integer"
+ } else {
+ x <- runif(n, min = range[1], max = range[2])
+ }
+ storage.mode(x) <- mode
+ if (na_prob > 0)
+ x[sample(n, size = na_prob * n)] <- NA
+ dim(x) <- c(nrow, ncol)
+ x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+ set.seed(seed)
+ data <- list()
+ data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+ data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+ data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+ data[[4]] <- t(data[[3]])
+ data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+ data[[6]] <- t(data[[5]])
+ names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+ data
+ }
> data <- rmatrices(mode = mode)
Results
10x10 integer matrix
> X <- data[["10x10"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5250188 280.4 7916910 422.9 7916910 422.9
Vcells 10132068 77.4 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236357 279.7 7916910 422.9 7916910 422.9
Vcells 10086015 77.0 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.006008 |
0.0089390 |
0.0128773 |
0.011302 |
0.0151575 |
0.035319 |
2 |
colMads2 |
0.007256 |
0.0098135 |
0.0163289 |
0.012464 |
0.0175690 |
0.159177 |
3 |
apply+mad |
0.578038 |
0.6448000 |
0.7424238 |
0.685349 |
0.7585050 |
1.542347 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.207723 |
1.09783 |
1.268039 |
1.102814 |
1.159096 |
4.506838 |
3 |
apply+mad |
96.211385 |
72.13335 |
57.653772 |
60.639621 |
50.041564 |
43.669045 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.005267 |
0.0078910 |
0.0111999 |
0.010449 |
0.0135275 |
0.033022 |
2 |
rowMads2 |
0.007037 |
0.0095090 |
0.0152600 |
0.012227 |
0.0169130 |
0.171203 |
3 |
apply+mad |
0.526914 |
0.5933545 |
0.6972633 |
0.663766 |
0.7822795 |
1.119822 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.00000 |
1.00000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.336055 |
1.205044 |
1.36251 |
1.17016 |
1.250268 |
5.184513 |
3 |
apply+mad |
100.040630 |
75.193828 |
62.25621 |
63.52436 |
57.828830 |
33.911392 |

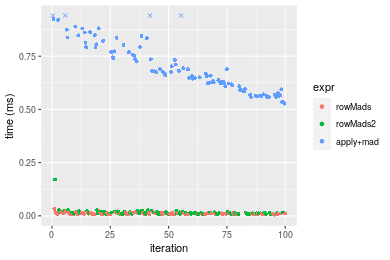

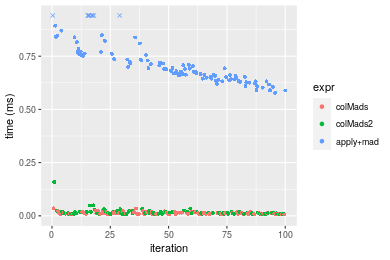

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+10x10 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
5.267 |
7.891 |
11.19990 |
10.449 |
13.5275 |
33.022 |
1 |
colMads |
6.008 |
8.939 |
12.87728 |
11.302 |
15.1575 |
35.319 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.00000 |
1 |
colMads |
1.140687 |
1.13281 |
1.149767 |
1.081635 |
1.120495 |
1.06956 |

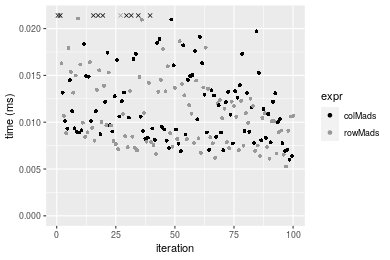

Figure: Benchmarking of colMads() and rowMads() on integer+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 integer matrix
> X <- data[["100x100"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5235065 279.6 7916910 422.9 7916910 422.9
Vcells 9702982 74.1 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5235053 279.6 7916910 422.9 7916910 422.9
Vcells 9708015 74.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.288204 |
0.3042840 |
0.3219376 |
0.3093615 |
0.324000 |
0.540244 |
2 |
colMads2 |
0.329864 |
0.3517865 |
0.3745369 |
0.3581860 |
0.373225 |
0.643909 |
3 |
apply+mad |
5.485353 |
5.9617085 |
6.5075370 |
6.1003425 |
6.417079 |
15.308379 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.14455 |
1.156112 |
1.163384 |
1.157823 |
1.151929 |
1.191885 |
3 |
apply+mad |
19.03288 |
19.592580 |
20.213663 |
19.719139 |
19.805801 |
28.336046 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.277340 |
0.3005590 |
0.3248627 |
0.3104560 |
0.3224795 |
0.550608 |
2 |
rowMads2 |
0.324027 |
0.3519075 |
0.3828661 |
0.3659225 |
0.3937625 |
0.660055 |
3 |
apply+mad |
5.529593 |
5.9854355 |
6.5428063 |
6.1587030 |
6.5604375 |
16.253279 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.168338 |
1.170843 |
1.178547 |
1.178661 |
1.221047 |
1.198775 |
3 |
apply+mad |
19.937957 |
19.914345 |
20.140221 |
19.837603 |
20.343735 |
29.518785 |

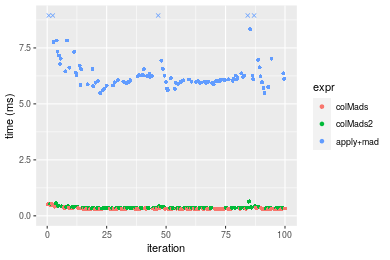

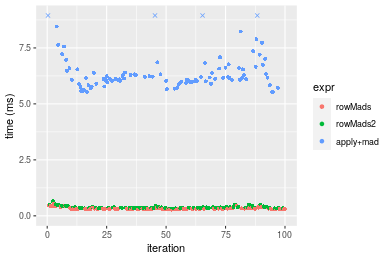

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+100x100 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
288.204 |
304.284 |
321.9375 |
309.3615 |
324.0000 |
540.244 |
2 |
rowMads |
277.340 |
300.559 |
324.8627 |
310.4560 |
322.4795 |
550.608 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.0000000 |
1.0000000 |
1.000000 |
1.000000 |
1.0000000 |
1.000000 |
2 |
rowMads |
0.9623045 |
0.9877581 |
1.009086 |
1.003538 |
0.9953071 |
1.019184 |

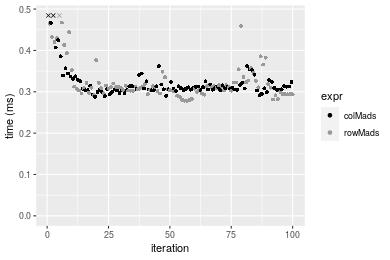

Figure: Benchmarking of colMads() and rowMads() on integer+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 integer matrix
> X <- data[["1000x10"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5235818 279.7 7916910 422.9 7916910 422.9
Vcells 9706758 74.1 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5235806 279.7 7916910 422.9 7916910 422.9
Vcells 9711791 74.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.205421 |
0.2096165 |
0.2285328 |
0.215315 |
0.2275780 |
0.348785 |
2 |
colMads2 |
0.292945 |
0.2973145 |
0.3207022 |
0.304180 |
0.3163755 |
0.497397 |
3 |
apply+mad |
0.945397 |
0.9828475 |
1.0577727 |
1.003020 |
1.0608850 |
1.626488 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.426071 |
1.418374 |
1.403309 |
1.412721 |
1.390185 |
1.426085 |
3 |
apply+mad |
4.602241 |
4.688789 |
4.628538 |
4.658384 |
4.661632 |
4.663297 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.205531 |
0.214717 |
0.2469517 |
0.2315225 |
0.2665785 |
0.396427 |
2 |
rowMads2 |
0.300974 |
0.320105 |
0.3565909 |
0.3386340 |
0.3806480 |
0.662962 |
3 |
apply+mad |
0.936455 |
1.011062 |
1.1561816 |
1.0873200 |
1.2314520 |
1.721523 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.464373 |
1.490823 |
1.443970 |
1.46264 |
1.427902 |
1.672343 |
3 |
apply+mad |
4.556271 |
4.708814 |
4.681813 |
4.69639 |
4.619472 |
4.342598 |

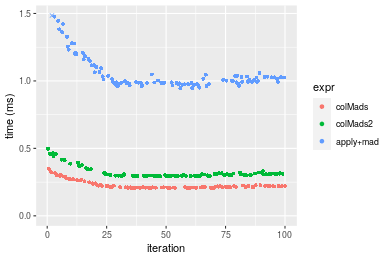

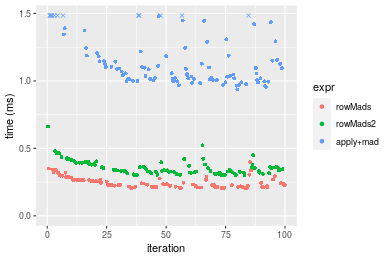

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+1000x10 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
205.421 |
209.6165 |
228.5328 |
215.3150 |
227.5780 |
348.785 |
2 |
rowMads |
205.531 |
214.7170 |
246.9517 |
231.5225 |
266.5785 |
396.427 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads |
1.000536 |
1.024333 |
1.080596 |
1.075273 |
1.171372 |
1.136594 |

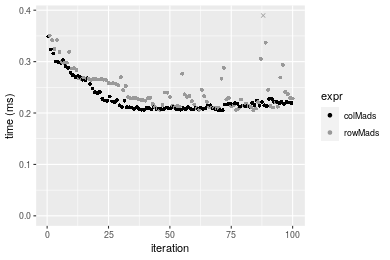

Figure: Benchmarking of colMads() and rowMads() on integer+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 integer matrix
> X <- data[["10x1000"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236031 279.7 7916910 422.9 7916910 422.9
Vcells 9707203 74.1 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236019 279.7 7916910 422.9 7916910 422.9
Vcells 9712236 74.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.300013 |
0.3129680 |
0.3362636 |
0.3262210 |
0.3472170 |
0.464604 |
2 |
colMads2 |
0.386706 |
0.4063285 |
0.4363596 |
0.4227135 |
0.4488505 |
0.608235 |
3 |
apply+mad |
53.390469 |
55.6037720 |
58.9248073 |
57.1347870 |
61.3852145 |
79.644082 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.288964 |
1.298307 |
1.297671 |
1.295789 |
1.292709 |
1.309147 |
3 |
apply+mad |
177.960518 |
177.665998 |
175.233965 |
175.141352 |
176.792077 |
171.423582 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.293525 |
0.3190915 |
0.3424545 |
0.338164 |
0.349548 |
0.548934 |
2 |
rowMads2 |
0.365048 |
0.3952690 |
0.4366536 |
0.421001 |
0.447570 |
0.682582 |
3 |
apply+mad |
52.077990 |
55.4750085 |
62.1849491 |
57.019343 |
61.826714 |
441.039492 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.243669 |
1.238733 |
1.27507 |
1.244961 |
1.280425 |
1.243468 |
3 |
apply+mad |
177.422673 |
173.852981 |
181.58603 |
168.614467 |
176.876177 |
803.447212 |

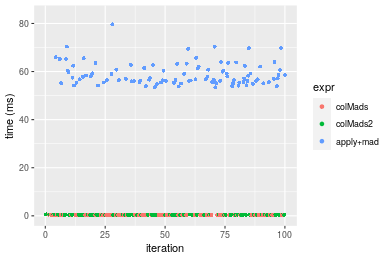

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+10x1000 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
300.013 |
312.9680 |
336.2636 |
326.221 |
347.217 |
464.604 |
2 |
rowMads |
293.525 |
319.0915 |
342.4545 |
338.164 |
349.548 |
548.934 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.0000000 |
1.000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
2 |
rowMads |
0.9783743 |
1.019566 |
1.018411 |
1.03661 |
1.006713 |
1.181509 |

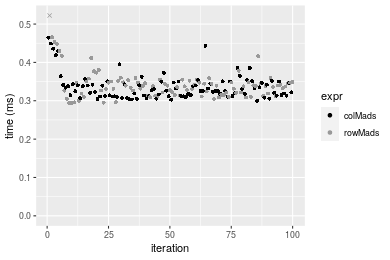

Figure: Benchmarking of colMads() and rowMads() on integer+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 integer matrix
> X <- data[["100x1000"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236235 279.7 7916910 422.9 7916910 422.9
Vcells 9708251 74.1 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236223 279.7 7916910 422.9 7916910 422.9
Vcells 9758284 74.5 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
2.732366 |
2.958270 |
3.042362 |
3.000695 |
3.091835 |
3.745999 |
2 |
colMads2 |
3.190511 |
3.452091 |
3.658987 |
3.510760 |
3.724194 |
5.686655 |
3 |
apply+mad |
57.593631 |
60.101595 |
65.938331 |
62.828356 |
71.874273 |
89.755145 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.167673 |
1.166929 |
1.20268 |
1.169982 |
1.204526 |
1.518061 |
3 |
apply+mad |
21.078300 |
20.316467 |
21.67340 |
20.937931 |
23.246481 |
23.960269 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
2.736589 |
2.893521 |
3.100275 |
2.993682 |
3.089872 |
4.526965 |
2 |
rowMads2 |
3.185507 |
3.393479 |
3.567830 |
3.511339 |
3.602651 |
4.824806 |
3 |
apply+mad |
54.651441 |
58.901973 |
63.772764 |
61.090222 |
68.626045 |
98.092594 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.164043 |
1.172786 |
1.150811 |
1.172916 |
1.165955 |
1.065793 |
3 |
apply+mad |
19.970643 |
20.356508 |
20.570033 |
20.406383 |
22.209992 |
21.668512 |

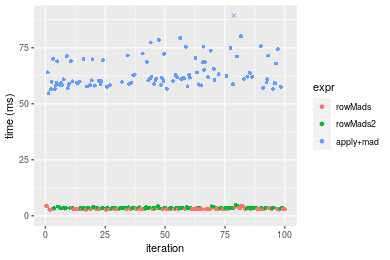

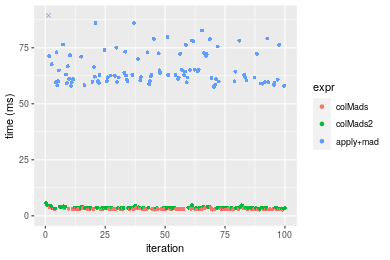

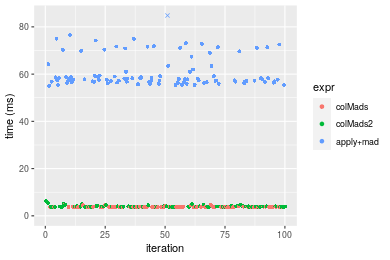

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+100x1000 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
2.736589 |
2.893521 |
3.100275 |
2.993682 |
3.089872 |
4.526965 |
1 |
colMads |
2.732366 |
2.958270 |
3.042362 |
3.000695 |
3.091835 |
3.745999 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
1.0000000 |
1.000000 |
1.0000000 |
1.000000 |
1.000000 |
1.0000000 |
1 |
colMads |
0.9984568 |
1.022377 |
0.9813199 |
1.002343 |
1.000635 |
0.8274857 |

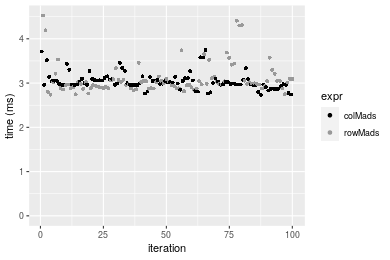

Figure: Benchmarking of colMads() and rowMads() on integer+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 integer matrix
> X <- data[["1000x100"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236441 279.7 7916910 422.9 7916910 422.9
Vcells 9708929 74.1 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236429 279.7 7916910 422.9 7916910 422.9
Vcells 9758962 74.5 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on integer+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
2.149437 |
2.268655 |
2.403680 |
2.297431 |
2.368051 |
3.833008 |
2 |
colMads2 |
2.853136 |
3.018869 |
3.098946 |
3.065358 |
3.130867 |
3.554206 |
3 |
apply+mad |
9.178282 |
9.702927 |
10.523006 |
9.886722 |
10.321673 |
19.899442 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.0000000 |
2 |
colMads2 |
1.327388 |
1.330687 |
1.289251 |
1.334254 |
1.322128 |
0.9272629 |
3 |
apply+mad |
4.270086 |
4.276952 |
4.377874 |
4.303382 |
4.358720 |
5.1915994 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on integer+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
2.167019 |
2.293264 |
2.378061 |
2.332356 |
2.394051 |
3.319538 |
2 |
rowMads2 |
2.914743 |
3.069144 |
3.148932 |
3.105767 |
3.151811 |
4.700630 |
3 |
apply+mad |
9.493770 |
9.820789 |
10.446945 |
9.976705 |
10.187645 |
20.374530 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.345047 |
1.338330 |
1.324159 |
1.331601 |
1.316518 |
1.416049 |
3 |
apply+mad |
4.381028 |
4.282449 |
4.393052 |
4.277521 |
4.255400 |
6.137761 |

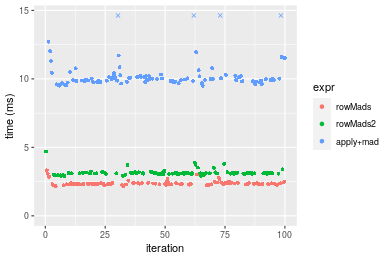

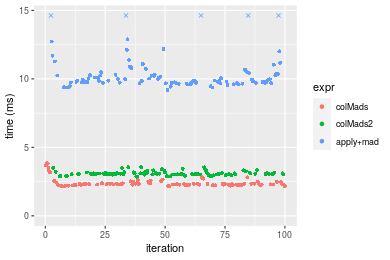

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on integer+1000x100 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on integer+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
2.149437 |
2.268655 |
2.403680 |
2.297431 |
2.368051 |
3.833008 |
2 |
rowMads |
2.167019 |
2.293264 |
2.378061 |
2.332356 |
2.394051 |
3.319538 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.0000000 |
2 |
rowMads |
1.00818 |
1.010848 |
0.989342 |
1.015202 |
1.010979 |
0.8660399 |

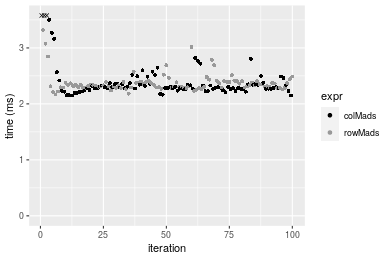

Figure: Benchmarking of colMads() and rowMads() on integer+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”
Data
> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+ +100), na_prob = 0) {
+ mode <- match.arg(mode)
+ n <- nrow * ncol
+ if (mode == "logical") {
+ x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+ } else if (mode == "index") {
+ x <- seq_len(n)
+ mode <- "integer"
+ } else {
+ x <- runif(n, min = range[1], max = range[2])
+ }
+ storage.mode(x) <- mode
+ if (na_prob > 0)
+ x[sample(n, size = na_prob * n)] <- NA
+ dim(x) <- c(nrow, ncol)
+ x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+ set.seed(seed)
+ data <- list()
+ data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+ data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+ data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+ data[[4]] <- t(data[[3]])
+ data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+ data[[6]] <- t(data[[5]])
+ names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+ data
+ }
> data <- rmatrices(mode = mode)
Results
10x10 double matrix
> X <- data[["10x10"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236649 279.7 7916910 422.9 7916910 422.9
Vcells 9824775 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236634 279.7 7916910 422.9 7916910 422.9
Vcells 9824903 75.0 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.007301 |
0.0091490 |
0.0125283 |
0.0107825 |
0.0141795 |
0.035670 |
2 |
colMads2 |
0.008105 |
0.0098190 |
0.0141751 |
0.0122500 |
0.0156610 |
0.055392 |
3 |
apply+mad |
0.552625 |
0.6012315 |
0.6747279 |
0.6417020 |
0.7154615 |
1.131534 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.00000 |
1.00000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.110122 |
1.073232 |
1.13145 |
1.13610 |
1.104482 |
1.552902 |
3 |
apply+mad |
75.691686 |
65.715543 |
53.85639 |
59.51329 |
50.457456 |
31.722288 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.006446 |
0.0086830 |
0.0108839 |
0.0107285 |
0.0122325 |
0.030743 |
2 |
rowMads2 |
0.007483 |
0.0100635 |
0.0131113 |
0.0125020 |
0.0151265 |
0.030781 |
3 |
apply+mad |
0.520657 |
0.5641715 |
0.6454382 |
0.6239045 |
0.6974975 |
1.018438 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.160875 |
1.158989 |
1.20465 |
1.165307 |
1.236583 |
1.001236 |
3 |
apply+mad |
80.772107 |
64.974260 |
59.30199 |
58.153936 |
57.020029 |
33.127476 |

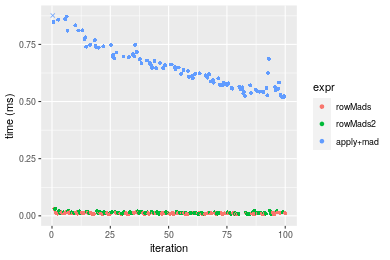

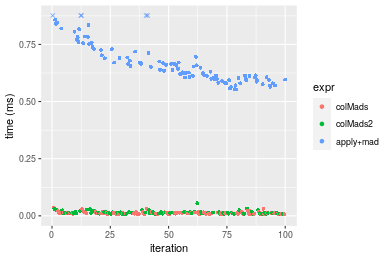

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+10x10 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
6.446 |
8.683 |
10.88392 |
10.7285 |
12.2325 |
30.743 |
1 |
colMads |
7.301 |
9.149 |
12.52828 |
10.7825 |
14.1795 |
35.670 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1 |
colMads |
1.13264 |
1.053668 |
1.151082 |
1.005033 |
1.159166 |
1.160264 |

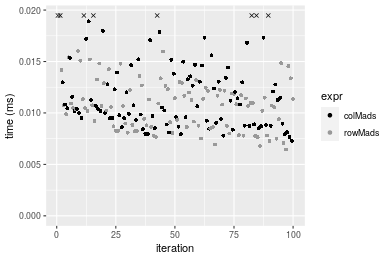

Figure: Benchmarking of colMads() and rowMads() on double+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 double matrix
> X <- data[["100x100"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236851 279.7 7916910 422.9 7916910 422.9
Vcells 9825697 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5236839 279.7 7916910 422.9 7916910 422.9
Vcells 9835730 75.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.359134 |
0.3713445 |
0.3974377 |
0.3823495 |
0.4008460 |
0.714462 |
2 |
colMads2 |
0.382480 |
0.3948385 |
0.4205244 |
0.4058825 |
0.4208245 |
0.801874 |
3 |
apply+mad |
5.465700 |
5.7846365 |
6.3019386 |
5.9572075 |
6.2228885 |
15.371729 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.065006 |
1.063267 |
1.058089 |
1.061548 |
1.049841 |
1.122347 |
3 |
apply+mad |
15.219110 |
15.577547 |
15.856420 |
15.580529 |
15.524387 |
21.515111 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.359058 |
0.3785015 |
0.4075618 |
0.388182 |
0.424616 |
0.557033 |
2 |
rowMads2 |
0.378043 |
0.4006405 |
0.4309033 |
0.414079 |
0.450724 |
0.573165 |
3 |
apply+mad |
5.478529 |
5.8585485 |
6.4845089 |
6.101722 |
6.381883 |
15.598265 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.052874 |
1.058491 |
1.057271 |
1.066714 |
1.061486 |
1.028961 |
3 |
apply+mad |
15.258061 |
15.478270 |
15.910493 |
15.718713 |
15.029776 |
28.002407 |

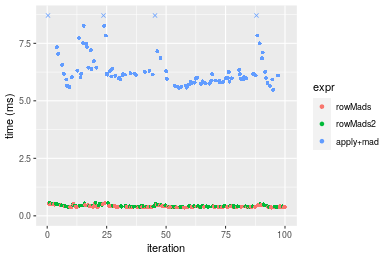

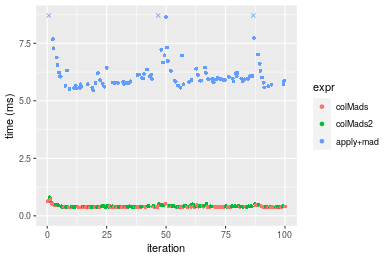

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+100x100 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
359.134 |
371.3445 |
397.4377 |
382.3495 |
400.846 |
714.462 |
2 |
rowMads |
359.058 |
378.5015 |
407.5618 |
388.1820 |
424.616 |
557.033 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.0000000 |
1.000000 |
1.000000 |
1.000000 |
1.0000 |
1.0000000 |
2 |
rowMads |
0.9997884 |
1.019273 |
1.025473 |
1.015254 |
1.0593 |
0.7796538 |

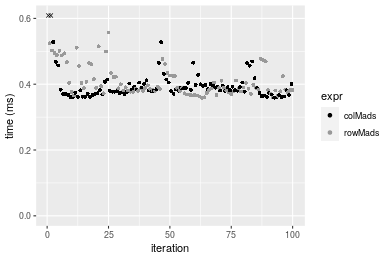

Figure: Benchmarking of colMads() and rowMads() on double+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 double matrix
> X <- data[["1000x10"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237060 279.7 7916910 422.9 7916910 422.9
Vcells 9825837 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237048 279.7 7916910 422.9 7916910 422.9
Vcells 9835870 75.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.323200 |
0.3264030 |
0.3657205 |
0.3290165 |
0.4122505 |
0.613896 |
2 |
colMads2 |
0.350441 |
0.3527365 |
0.3882815 |
0.3565655 |
0.3868775 |
0.647756 |
3 |
apply+mad |
0.982257 |
1.0118440 |
1.1458180 |
1.0289080 |
1.2622370 |
2.460177 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.0000000 |
1.000000 |
2 |
colMads2 |
1.084285 |
1.080678 |
1.061689 |
1.083731 |
0.9384525 |
1.055156 |
3 |
apply+mad |
3.039162 |
3.099984 |
3.133043 |
3.127223 |
3.0618204 |
4.007482 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads2 |
0.356836 |
0.3630025 |
0.4414221 |
0.370424 |
0.4699085 |
0.715253 |
1 |
rowMads |
0.325514 |
0.3309335 |
0.4164100 |
0.372599 |
0.5018485 |
0.665517 |
3 |
apply+mad |
0.987841 |
1.0165795 |
1.2594425 |
1.049528 |
1.3445800 |
2.578281 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
2 |
rowMads2 |
1.000000 |
1.0000000 |
1.0000000 |
1.000000 |
1.000000 |
1.0000000 |
1 |
rowMads |
0.912223 |
0.9116563 |
0.9433375 |
1.005872 |
1.067971 |
0.9304638 |
3 |
apply+mad |
2.768333 |
2.8004752 |
2.8531480 |
2.833315 |
2.861366 |
3.6047119 |

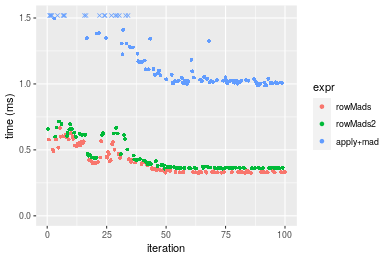

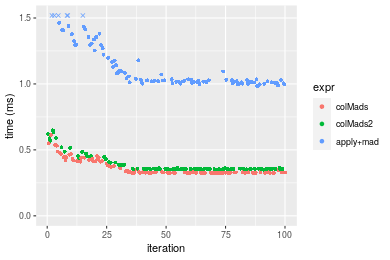

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+1000x10 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
323.200 |
326.4030 |
365.7205 |
329.0165 |
412.2505 |
613.896 |
2 |
rowMads |
325.514 |
330.9335 |
416.4100 |
372.5990 |
501.8485 |
665.517 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads |
1.00716 |
1.01388 |
1.138602 |
1.132463 |
1.217339 |
1.084088 |

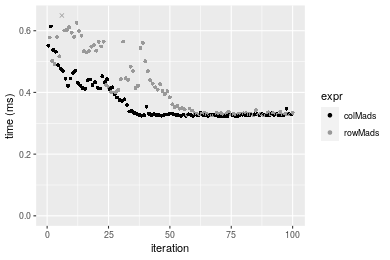

Figure: Benchmarking of colMads() and rowMads() on double+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 double matrix
> X <- data[["10x1000"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237273 279.8 7916910 422.9 7916910 422.9
Vcells 9826923 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237261 279.7 7916910 422.9 7916910 422.9
Vcells 9836956 75.1 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")

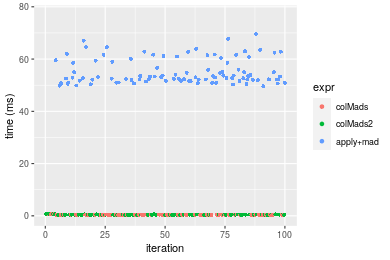

Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
0.354982 |
0.3693505 |
0.4034630 |
0.3840110 |
0.4020530 |
0.600879 |
2 |
colMads2 |
0.406891 |
0.4221795 |
0.4625114 |
0.4384475 |
0.4643095 |
0.701584 |
3 |
apply+mad |
49.588505 |
51.9684120 |
55.2081224 |
53.0631895 |
59.1562110 |
69.601091 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.14623 |
1.143032 |
1.146354 |
1.141758 |
1.154847 |
1.167596 |
3 |
apply+mad |
139.69301 |
140.702157 |
136.835634 |
138.181431 |
147.135355 |
115.832124 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
0.352994 |
0.3769265 |
0.4116897 |
0.3906765 |
0.421354 |
0.629198 |
2 |
rowMads2 |
0.406476 |
0.4240100 |
0.4570114 |
0.4440850 |
0.461010 |
0.771423 |
3 |
apply+mad |
50.049250 |
51.8938395 |
56.0030932 |
53.8218575 |
60.201223 |
76.673614 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.15151 |
1.124914 |
1.110087 |
1.136708 |
1.094116 |
1.226042 |
3 |
apply+mad |
141.78499 |
137.676283 |
136.032298 |
137.765792 |
142.875641 |
121.859278 |

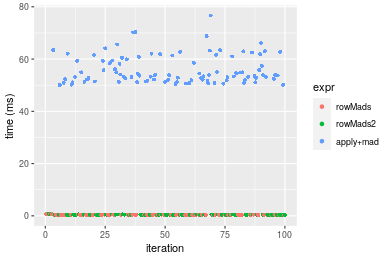

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+10x1000 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
354.982 |
369.3505 |
403.4631 |
384.0110 |
402.053 |
600.879 |
2 |
rowMads |
352.994 |
376.9265 |
411.6897 |
390.6765 |
421.354 |
629.198 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.0000000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads |
0.9943997 |
1.020512 |
1.02039 |
1.017358 |
1.048006 |
1.047129 |

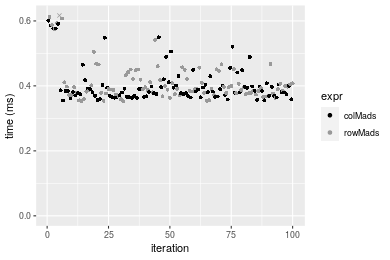

Figure: Benchmarking of colMads() and rowMads() on double+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 double matrix
> X <- data[["100x1000"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237477 279.8 7916910 422.9 7916910 422.9
Vcells 9827058 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237465 279.8 7916910 422.9 7916910 422.9
Vcells 9927091 75.8 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
3.610391 |
3.679383 |
3.805536 |
3.746309 |
3.851326 |
4.708104 |
2 |
colMads2 |
3.730725 |
3.843780 |
4.041137 |
3.895529 |
3.998488 |
6.323009 |
3 |
apply+mad |
54.997643 |
56.781560 |
64.271396 |
57.845460 |
62.692104 |
424.452660 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.000000 |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.03333 |
1.044681 |
1.06191 |
1.039831 |
1.038211 |
1.343005 |
3 |
apply+mad |
15.23315 |
15.432361 |
16.88892 |
15.440654 |
16.278057 |
90.153629 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
3.620537 |
3.712763 |
3.877254 |
3.762095 |
3.876806 |
6.061784 |
2 |
rowMads2 |
3.774482 |
3.874991 |
4.053704 |
3.962638 |
4.078225 |
5.099599 |
3 |
apply+mad |
54.672733 |
56.408330 |
60.612307 |
57.967467 |
61.591422 |
78.752876 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.0000000 |
2 |
rowMads2 |
1.04252 |
1.043695 |
1.045509 |
1.053306 |
1.051955 |
0.8412703 |
3 |
apply+mad |
15.10072 |
15.193089 |
15.632791 |
15.408294 |
15.887158 |
12.9916995 |

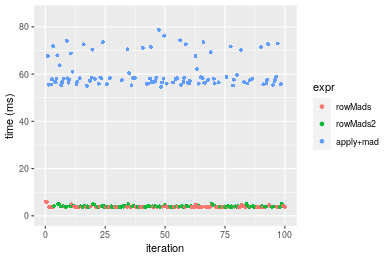

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+100x1000 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
3.610391 |
3.679383 |
3.805536 |
3.746309 |
3.851326 |
4.708104 |
2 |
rowMads |
3.620537 |
3.712763 |
3.877254 |
3.762095 |
3.876806 |
6.061784 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.00000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads |
1.00281 |
1.009072 |
1.018846 |
1.004214 |
1.006616 |
1.287521 |

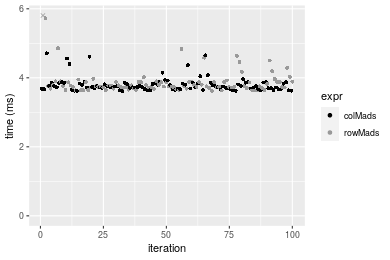

Figure: Benchmarking of colMads() and rowMads() on double+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 double matrix
> X <- data[["1000x100"]]
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237683 279.8 7916910 422.9 7916910 422.9
Vcells 9828355 75.0 33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colMads = colMads(X, na.rm = FALSE), colMads2 = colMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 2L, FUN = mad, na.rm = FALSE), unit = "ms")
> X <- t(X)
> gc()
used (Mb) gc trigger (Mb) max used (Mb)
Ncells 5237671 279.8 7916910 422.9 7916910 422.9
Vcells 9928388 75.8 33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowMads = rowMads(X, na.rm = FALSE), rowMads2 = rowMads2(X, na.rm = FALSE),
+ `apply+mad` = apply(X, MARGIN = 1L, FUN = mad, na.rm = FALSE), unit = "ms")
Table: Benchmarking of colMads(), colMads2() and apply+mad() on double+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
3.309192 |
3.340129 |
3.531283 |
3.382344 |
3.474675 |
5.444749 |
2 |
colMads2 |
3.501391 |
3.537879 |
3.748482 |
3.609486 |
3.705232 |
11.490747 |
3 |
apply+mad |
9.639740 |
9.765279 |
10.340336 |
9.896778 |
10.194869 |
19.671879 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
colMads2 |
1.058080 |
1.059205 |
1.061507 |
1.067155 |
1.066353 |
2.110427 |
3 |
apply+mad |
2.913019 |
2.923624 |
2.928209 |
2.926011 |
2.934050 |
3.613000 |
Table: Benchmarking of rowMads(), rowMads2() and apply+mad() on double+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
3.341375 |
3.368112 |
3.530423 |
3.420777 |
3.482632 |
5.431077 |
2 |
rowMads2 |
3.499420 |
3.533547 |
3.658017 |
3.572109 |
3.621186 |
5.883676 |
3 |
apply+mad |
9.667425 |
9.780869 |
10.423393 |
9.901760 |
10.096395 |
19.759984 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
rowMads |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
1.000000 |
2 |
rowMads2 |
1.047299 |
1.049118 |
1.036141 |
1.044239 |
1.039784 |
1.083335 |
3 |
apply+mad |
2.893248 |
2.903962 |
2.952449 |
2.894594 |
2.899071 |
3.638318 |

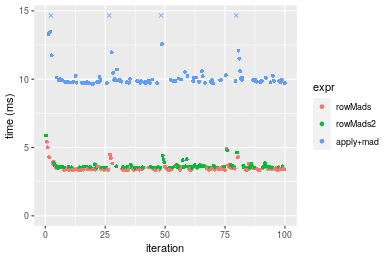

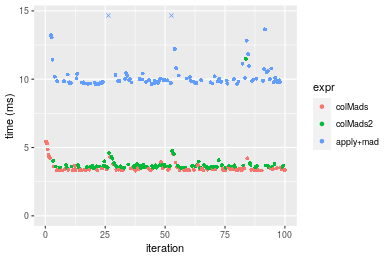

Figure: Benchmarking of colMads(), colMads2() and apply+mad() on double+1000x100 data as well as rowMads(), rowMads2() and apply+mad() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colMads() and rowMads() on double+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
3.309192 |
3.340129 |
3.531283 |
3.382344 |
3.474675 |
5.444749 |
2 |
rowMads |
3.341375 |
3.368112 |
3.530423 |
3.420777 |
3.482632 |
5.431077 |
|
expr |
min |
lq |
mean |
median |
uq |
max |
1 |
colMads |
1.000000 |
1.000000 |
1.0000000 |
1.000000 |
1.00000 |
1.000000 |
2 |
rowMads |
1.009725 |
1.008378 |
0.9997565 |
1.011363 |
1.00229 |
0.997489 |

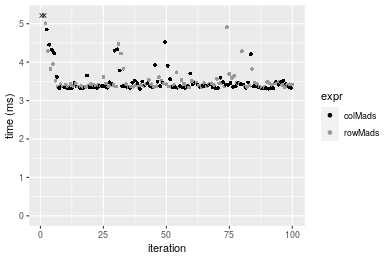

Figure: Benchmarking of colMads() and rowMads() on double+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Appendix
R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS
Matrix products: default
BLAS: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] microbenchmark_1.4-7 matrixStats_0.60.0 ggplot2_3.3.5
[4] knitr_1.33 R.devices_2.17.0 R.utils_2.10.1
[7] R.oo_1.24.0 R.methodsS3_1.8.1-9001 history_0.0.1-9000
loaded via a namespace (and not attached):
[1] Biobase_2.52.0 httr_1.4.2 splines_4.1.1
[4] bit64_4.0.5 network_1.17.1 assertthat_0.2.1
[7] highr_0.9 stats4_4.1.1 blob_1.2.2
[10] GenomeInfoDbData_1.2.6 robustbase_0.93-8 pillar_1.6.2
[13] RSQLite_2.2.8 lattice_0.20-44 glue_1.4.2
[16] digest_0.6.27 XVector_0.32.0 colorspace_2.0-2
[19] Matrix_1.3-4 XML_3.99-0.7 pkgconfig_2.0.3
[22] zlibbioc_1.38.0 genefilter_1.74.0 purrr_0.3.4
[25] ergm_4.1.2 xtable_1.8-4 scales_1.1.1
[28] tibble_3.1.4 annotate_1.70.0 KEGGREST_1.32.0
[31] farver_2.1.0 generics_0.1.0 IRanges_2.26.0
[34] ellipsis_0.3.2 cachem_1.0.6 withr_2.4.2
[37] BiocGenerics_0.38.0 mime_0.11 survival_3.2-13
[40] magrittr_2.0.1 crayon_1.4.1 statnet.common_4.5.0
[43] memoise_2.0.0 laeken_0.5.1 fansi_0.5.0
[46] R.cache_0.15.0 MASS_7.3-54 R.rsp_0.44.0
[49] progressr_0.8.0 tools_4.1.1 lifecycle_1.0.0
[52] S4Vectors_0.30.0 trust_0.1-8 munsell_0.5.0
[55] tabby_0.0.1-9001 AnnotationDbi_1.54.1 Biostrings_2.60.2
[58] compiler_4.1.1 GenomeInfoDb_1.28.1 rlang_0.4.11
[61] grid_4.1.1 RCurl_1.98-1.4 cwhmisc_6.6
[64] rstudioapi_0.13 rappdirs_0.3.3 startup_0.15.0
[67] labeling_0.4.2 bitops_1.0-7 base64enc_0.1-3
[70] boot_1.3-28 gtable_0.3.0 DBI_1.1.1
[73] markdown_1.1 R6_2.5.1 lpSolveAPI_5.5.2.0-17.7
[76] rle_0.9.2 dplyr_1.0.7 fastmap_1.1.0
[79] bit_4.0.4 utf8_1.2.2 parallel_4.1.1
[82] Rcpp_1.0.7 vctrs_0.3.8 png_0.1-7
[85] DEoptimR_1.0-9 tidyselect_1.1.1 xfun_0.25
[88] coda_0.19-4
Total processing time was 1.43 mins.
Reproducibility
To reproduce this report, do:
html <- matrixStats:::benchmark('colMads')
Copyright Henrik Bengtsson. Last updated on 2021-08-25 22:18:42 (+0200 UTC). Powered by RSP.
