matrixStats.benchmarks

colCummins() and rowCummins() benchmarks

This report benchmark the performance of colCummins() and rowCummins() against alternative methods.

Alternative methods

apply() + cummin()

Data type “integer”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 integer matrix

> X <- data[["10x10"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5210547 278.3    7916910 422.9  7916910 422.9
Vcells 9852037  75.2   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196857 277.6    7916910 422.9  7916910 422.9
Vcells 9806580  74.9   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.002229	0.0026415	0.0033156	0.0029885	0.0037445	0.012734
2	apply+cummin	0.043986	0.0453740	0.0469993	0.0457780	0.0461720	0.128298

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	19.73351	17.17736	14.17516	15.31805	12.33062	10.07523

Table: Benchmarking of rowCummins() and apply+cummin() on integer+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.002361	0.0027330	0.0034246	0.0035675	0.0037355	0.012926
2	apply+cummin	0.044599	0.0454355	0.0476552	0.0460355	0.0475725	0.126598

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.000000
2	apply+cummin	18.88988	16.62477	13.91535	12.90413	12.73524	9.794059

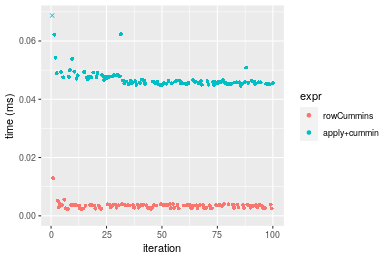

Figure: Benchmarking of colCummins() and apply+cummin() on integer+10x10 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	2.229	2.6415	3.31561	2.9885	3.7445	12.734
2	rowCummins	2.361	2.7330	3.42465	3.5675	3.7355	12.926

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.000000	1.0000000	1.000000
2	rowCummins	1.059219	1.034639	1.032887	1.193743	0.9975965	1.015078

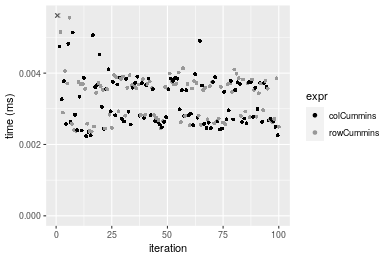

Figure: Benchmarking of colCummins() and rowCummins() on integer+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 integer matrix

> X <- data[["100x100"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5195419 277.5    7916910 422.9  7916910 422.9
Vcells 9423072  71.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5195413 277.5    7916910 422.9  7916910 422.9
Vcells 9428115  72.0   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.022190	0.0238755	0.0261154	0.0250390	0.027731	0.043445
2	apply+cummin	0.233114	0.2432065	0.2734432	0.2676035	0.292699	0.439762

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	10.50536	10.18645	10.47056	10.68747	10.55494	10.12227

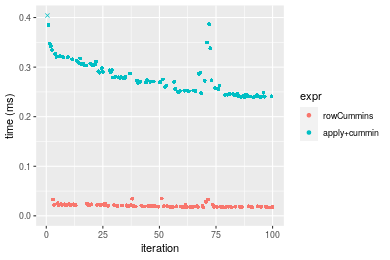

Table: Benchmarking of rowCummins() and apply+cummin() on integer+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.016779	0.0181550	0.0203581	0.0191070	0.021661	0.034899
2	apply+cummin	0.239145	0.2477805	0.2801754	0.2728115	0.303913	0.489863

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	14.25264	13.64806	13.76232	14.27809	14.03042	14.03659

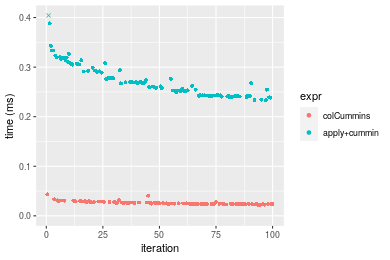

Figure: Benchmarking of colCummins() and apply+cummin() on integer+100x100 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	16.779	18.1550	20.35815	19.107	21.661	34.899
1	colCummins	22.190	23.8755	26.11542	25.039	27.731	43.445

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colCummins	1.322486	1.315092	1.282799	1.310462	1.280227	1.244878

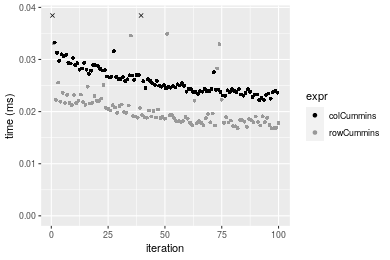

Figure: Benchmarking of colCummins() and rowCummins() on integer+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 integer matrix

> X <- data[["1000x10"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196151 277.6    7916910 422.9  7916910 422.9
Vcells 9426583  72.0   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196145 277.6    7916910 422.9  7916910 422.9
Vcells 9431626  72.0   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.024455	0.0273985	0.0292194	0.0295220	0.0304175	0.046926
2	apply+cummin	0.150360	0.1618490	0.1762110	0.1782605	0.1854590	0.259739

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.00000	1.000000	1.000000	1.000000
2	apply+cummin	6.148436	5.907221	6.03061	6.038226	6.097115	5.535076

Table: Benchmarking of rowCummins() and apply+cummin() on integer+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.021131	0.0233595	0.0251970	0.024514	0.0256150	0.045575
2	apply+cummin	0.163532	0.1744620	0.1886527	0.185424	0.1908875	0.286502

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+cummin	7.738962	7.468567	7.487114	7.564004	7.452177	6.286385

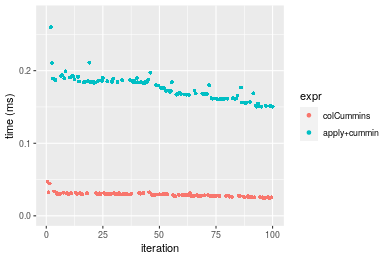

Figure: Benchmarking of colCummins() and apply+cummin() on integer+1000x10 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	21.131	23.3595	25.19698	24.514	25.6150	45.575
1	colCummins	24.455	27.3985	29.21944	29.522	30.4175	46.926

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colCummins	1.157304	1.172906	1.159641	1.204291	1.187488	1.029643

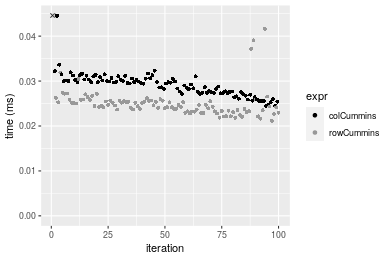

Figure: Benchmarking of colCummins() and rowCummins() on integer+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 integer matrix

> X <- data[["10x1000"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196339 277.6    7916910 422.9  7916910 422.9
Vcells 9427273  72.0   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196333 277.6    7916910 422.9  7916910 422.9
Vcells 9432316  72.0   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.014576	0.0157665	0.0184986	0.0173225	0.0202455	0.038839
2	apply+cummin	0.881523	0.8993215	1.0258743	0.9633575	1.1251470	1.471905

	expr	min	lq	mean	median	uq	max
1	colCummins	1.0000	1.00000	1.0000	1.00000	1.00000	1.0000
2	apply+cummin	60.4777	57.04002	55.4568	55.61308	55.57516	37.8976

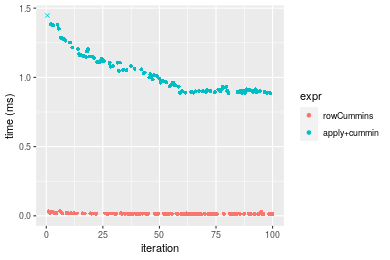

Table: Benchmarking of rowCummins() and apply+cummin() on integer+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.012217	0.0132605	0.015703	0.0146280	0.0166105	0.035086
2	apply+cummin	0.885263	0.9017000	1.026040	0.9718755	1.1172860	1.474272

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.0000	1.00000	1.00000
2	apply+cummin	72.46157	67.99894	65.34032	66.4394	67.26384	42.01881

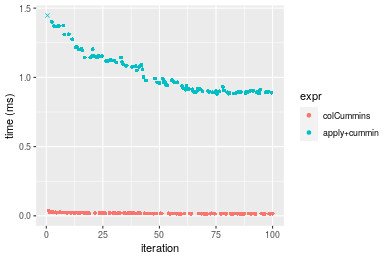

Figure: Benchmarking of colCummins() and apply+cummin() on integer+10x1000 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	12.217	13.2605	15.70301	14.6280	16.6105	35.086
1	colCummins	14.576	15.7665	18.49862	17.3225	20.2455	38.839

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.00000	1.000000	1.000000	1.000000
1	colCummins	1.193092	1.188982	1.17803	1.184201	1.218838	1.106966

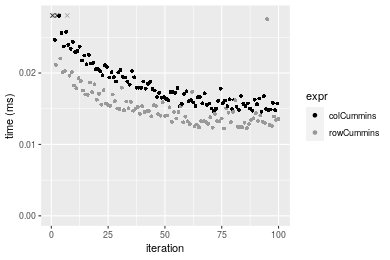

Figure: Benchmarking of colCummins() and rowCummins() on integer+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 integer matrix

> X <- data[["100x1000"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196525 277.6    7916910 422.9  7916910 422.9
Vcells 9427771  72.0   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196513 277.6    7916910 422.9  7916910 422.9
Vcells 9477804  72.4   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.162259	0.1688415	0.2122096	0.202050	0.2682755	0.289558
2	apply+cummin	1.641799	1.6738335	2.0706028	1.824884	2.0891775	16.677729

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.000000	1.000000	1.000000	1.000000	1.0000
2	apply+cummin	10.11838	9.913638	9.757346	9.031844	7.787433	57.5972

Table: Benchmarking of rowCummins() and apply+cummin() on integer+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.106469	0.108314	0.1232181	0.1131175	0.129544	0.316269
2	apply+cummin	1.632863	1.664809	2.0879960	1.7190735	2.039814	16.428674

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	15.33651	15.37021	16.94553	15.19724	15.74611	51.94526

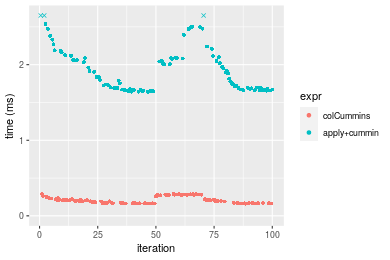

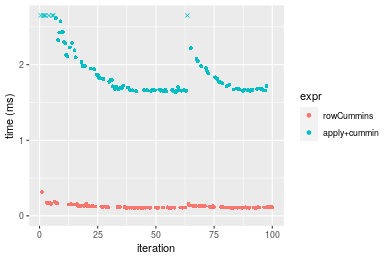

Figure: Benchmarking of colCummins() and apply+cummin() on integer+100x1000 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	106.469	108.3140	123.2181	113.1175	129.5440	316.269
1	colCummins	162.259	168.8415	212.2096	202.0500	268.2755	289.558

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.0000000
1	colCummins	1.524002	1.558815	1.722228	1.786196	2.070922	0.9155434

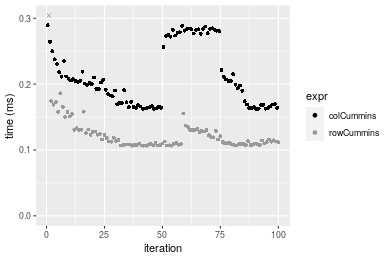

Figure: Benchmarking of colCummins() and rowCummins() on integer+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 integer matrix

> X <- data[["1000x100"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196718 277.6    7916910 422.9  7916910 422.9
Vcells 9428338  72.0   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196712 277.6    7916910 422.9  7916910 422.9
Vcells 9478381  72.4   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on integer+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.165614	0.1745995	0.2604943	0.186495	0.2160475	6.618560
2	apply+cummin	0.899980	0.9636280	1.1328491	1.094459	1.2090655	1.769006

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.00000	1.000000	1.0000000
2	apply+cummin	5.434202	5.519076	4.348844	5.86857	5.596295	0.2672796

Table: Benchmarking of rowCummins() and apply+cummin() on integer+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.114049	0.1181895	0.1350835	0.1325525	0.144677	0.196824
2	apply+cummin	0.904406	0.9332710	1.1549733	1.0757435	1.187177	7.402394

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.000000	1.000000	1.00000	1.000000	1.00000	1.0000
2	apply+cummin	7.929977	7.896395	8.55007	8.115603	8.20571	37.6092

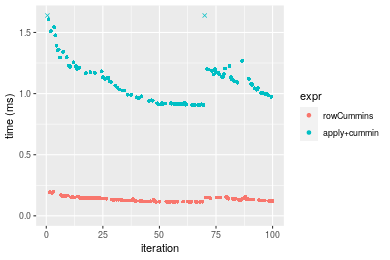

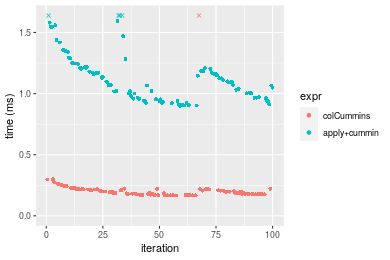

Figure: Benchmarking of colCummins() and apply+cummin() on integer+1000x100 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on integer+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	114.049	118.1895	135.0835	132.5525	144.6770	196.824
1	colCummins	165.614	174.5995	260.4943	186.4950	216.0475	6618.560

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.00000	1.000000	1.000000	1.000000	1.000000	1.00000
1	colCummins	1.45213	1.477284	1.928395	1.406952	1.493309	33.62679

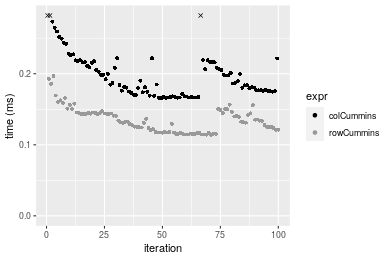

Figure: Benchmarking of colCummins() and rowCummins() on integer+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Data type “double”

Data

> rmatrix <- function(nrow, ncol, mode = c("logical", "double", "integer", "index"), range = c(-100,
+     +100), na_prob = 0) {
+     mode <- match.arg(mode)
+     n <- nrow * ncol
+     if (mode == "logical") {
+         x <- sample(c(FALSE, TRUE), size = n, replace = TRUE)
+     }     else if (mode == "index") {
+         x <- seq_len(n)
+         mode <- "integer"
+     }     else {
+         x <- runif(n, min = range[1], max = range[2])
+     }
+     storage.mode(x) <- mode
+     if (na_prob > 0)
+         x[sample(n, size = na_prob * n)] <- NA
+     dim(x) <- c(nrow, ncol)
+     x
+ }
> rmatrices <- function(scale = 10, seed = 1, ...) {
+     set.seed(seed)
+     data <- list()
+     data[[1]] <- rmatrix(nrow = scale * 1, ncol = scale * 1, ...)
+     data[[2]] <- rmatrix(nrow = scale * 10, ncol = scale * 10, ...)
+     data[[3]] <- rmatrix(nrow = scale * 100, ncol = scale * 1, ...)
+     data[[4]] <- t(data[[3]])
+     data[[5]] <- rmatrix(nrow = scale * 10, ncol = scale * 100, ...)
+     data[[6]] <- t(data[[5]])
+     names(data) <- sapply(data, FUN = function(x) paste(dim(x), collapse = "x"))
+     data
+ }
> data <- rmatrices(mode = mode)

Results

10x10 double matrix

> X <- data[["10x10"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196918 277.6    7916910 422.9  7916910 422.9
Vcells 9544065  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5196903 277.6    7916910 422.9  7916910 422.9
Vcells 9544193  72.9   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on double+10x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.002318	0.0026385	0.0033606	0.003011	0.0038760	0.013986
2	apply+cummin	0.044473	0.0452725	0.0468133	0.045720	0.0460865	0.122967

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.000000
2	apply+cummin	19.18594	17.15842	13.93017	15.18432	11.89022	8.792149

Table: Benchmarking of rowCummins() and apply+cummin() on double+10x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.002325	0.0027195	0.0034384	0.0035880	0.0037465	0.014663
2	apply+cummin	0.044531	0.0452120	0.0465784	0.0455685	0.0459740	0.120364

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.000000
2	apply+cummin	19.15312	16.62511	13.54669	12.70025	12.27119	8.208688

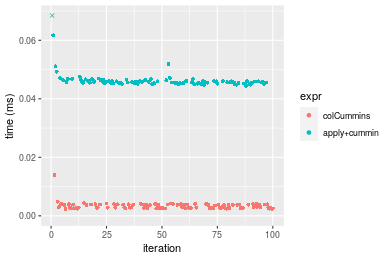

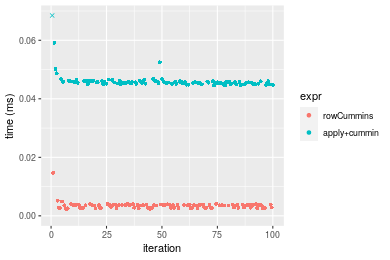

Figure: Benchmarking of colCummins() and apply+cummin() on double+10x10 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+10x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	2.318	2.6385	3.36057	3.011	3.8760	13.986
2	rowCummins	2.325	2.7195	3.43836	3.588	3.7465	14.663

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.000000	1.000000	1.000000	1.0000000	1.000000
2	rowCummins	1.00302	1.030699	1.023148	1.191631	0.9665893	1.048406

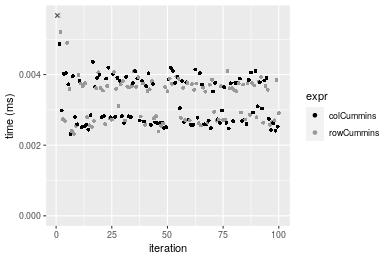

Figure: Benchmarking of colCummins() and rowCummins() on double+10x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x100 double matrix

> X <- data[["100x100"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197093 277.6    7916910 422.9  7916910 422.9
Vcells 9544861  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197087 277.6    7916910 422.9  7916910 422.9
Vcells 9554904  72.9   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on double+100x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.029391	0.0310710	0.0341979	0.0330470	0.0361950	0.064007
2	apply+cummin	0.224840	0.2335375	0.2668674	0.2627965	0.2889055	0.419988

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+cummin	7.649961	7.516253	7.803617	7.952204	7.981917	6.561595

Table: Benchmarking of rowCummins() and apply+cummin() on double+100x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.014422	0.016206	0.0180022	0.0173825	0.0189235	0.041610
2	apply+cummin	0.239721	0.261273	0.2848675	0.2764945	0.3005285	0.498169

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.0000	1.00000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	16.6219	16.12199	15.82403	15.90649	15.88123	11.97234

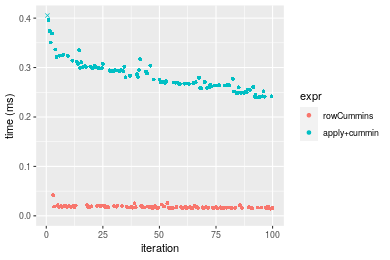

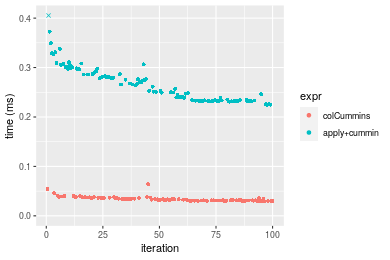

Figure: Benchmarking of colCummins() and apply+cummin() on double+100x100 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+100x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	14.422	16.206	18.00221	17.3825	18.9235	41.610
1	colCummins	29.391	31.071	34.19791	33.0470	36.1950	64.007

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
1	colCummins	2.037928	1.917253	1.899651	1.901165	1.912701	1.53826

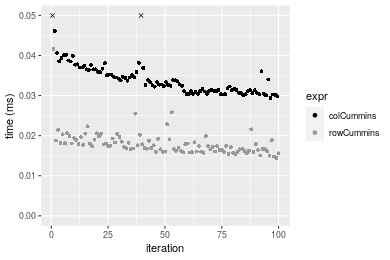

Figure: Benchmarking of colCummins() and rowCummins() on double+100x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x10 double matrix

> X <- data[["1000x10"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197285 277.6    7916910 422.9  7916910 422.9
Vcells 9545764  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197279 277.6    7916910 422.9  7916910 422.9
Vcells 9555807  73.0   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on double+1000x10 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.033654	0.037679	0.0399695	0.040166	0.0417550	0.062494
2	apply+cummin	0.148997	0.164302	0.1798893	0.183249	0.1904335	0.272238

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+cummin	4.427319	4.360572	4.500661	4.562291	4.560735	4.356226

Table: Benchmarking of rowCummins() and apply+cummin() on double+1000x10 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.016275	0.017878	0.0200442	0.019909	0.0212790	0.037780
2	apply+cummin	0.150830	0.161284	0.1777553	0.176759	0.1907185	0.271523

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+cummin	9.267588	9.021367	8.868151	8.878346	8.962757	7.186951

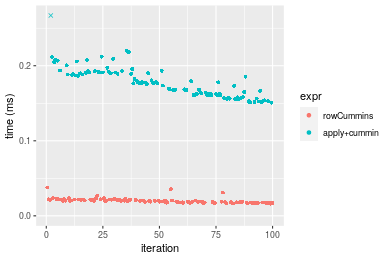

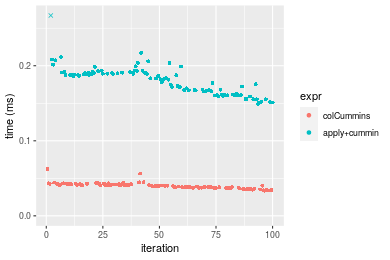

Figure: Benchmarking of colCummins() and apply+cummin() on double+1000x10 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+1000x10 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	16.275	17.878	20.04423	19.909	21.279	37.780
1	colCummins	33.654	37.679	39.96954	40.166	41.755	62.494

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colCummins	2.067834	2.107562	1.994067	2.017479	1.962263	1.654156

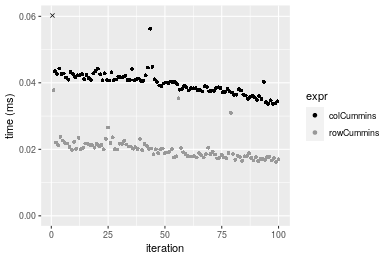

Figure: Benchmarking of colCummins() and rowCummins() on double+1000x10 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

10x1000 double matrix

> X <- data[["10x1000"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197473 277.6    7916910 422.9  7916910 422.9
Vcells 9545889  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197467 277.6    7916910 422.9  7916910 422.9
Vcells 9555932  73.0   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on double+10x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.014831	0.0167140	0.0199742	0.0188755	0.0221425	0.039420
2	apply+cummin	0.839725	0.8873195	1.0086288	0.9533915	1.0935350	1.411559

	expr	min	lq	mean	median	uq	max
1	colCummins	1.00000	1.0000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	56.61958	53.0884	50.49661	50.50947	49.38625	35.80819

Table: Benchmarking of rowCummins() and apply+cummin() on double+10x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.010920	0.012744	0.0153962	0.014301	0.016793	0.033570
2	apply+cummin	0.829891	0.922490	1.0398857	1.035802	1.123713	1.426725

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.00000	1.00000	1.00000	1.00000	1.0
2	apply+cummin	75.99734	72.38622	67.54158	72.42868	66.91556	42.5

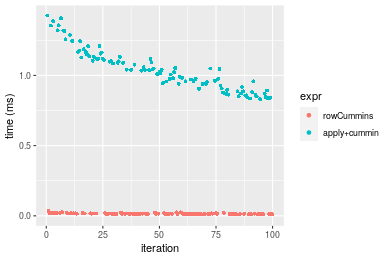

Figure: Benchmarking of colCummins() and apply+cummin() on double+10x1000 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+10x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	10.920	12.744	15.39623	14.3010	16.7930	33.57
1	colCummins	14.831	16.714	19.97419	18.8755	22.1425	39.42

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colCummins	1.35815	1.311519	1.297343	1.319873	1.318555	1.174263

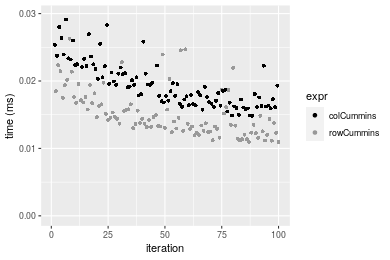

Figure: Benchmarking of colCummins() and rowCummins() on double+10x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

100x1000 double matrix

> X <- data[["100x1000"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197659 277.6    7916910 422.9  7916910 422.9
Vcells 9546944  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197647 277.6    7916910 422.9  7916910 422.9
Vcells 9646977  73.7   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

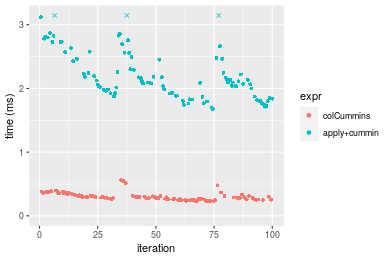

Table: Benchmarking of colCummins() and apply+cummin() on double+100x1000 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.224364	0.258856	0.3016059	0.288952	0.3184805	0.565744
2	apply+cummin	1.672009	1.921653	2.4282131	2.094174	2.4656300	14.610109

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.00000
2	apply+cummin	7.452216	7.423637	8.050948	7.247479	7.741855	25.82459

Table: Benchmarking of rowCummins() and apply+cummin() on double+100x1000 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.092501	0.1067305	0.1283555	0.122751	0.141771	0.223111
2	apply+cummin	1.773200	1.9558900	2.4272595	2.107800	2.264207	15.407174

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.0000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	19.16952	18.3255	18.91044	17.17135	15.97088	69.05609

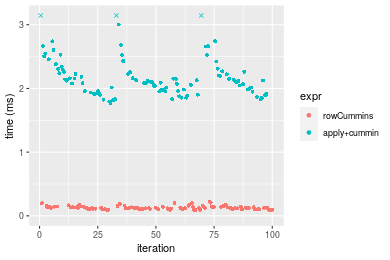

Figure: Benchmarking of colCummins() and apply+cummin() on double+100x1000 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+100x1000 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	92.501	106.7305	128.3555	122.751	141.7710	223.111
1	colCummins	224.364	258.8560	301.6059	288.952	318.4805	565.744

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.00000	1.000000	1.000000	1.000000	1.000000	1.000000
1	colCummins	2.42553	2.425324	2.349769	2.353969	2.246443	2.535706

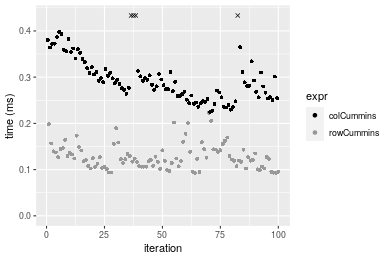

Figure: Benchmarking of colCummins() and rowCummins() on double+100x1000 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

1000x100 double matrix

> X <- data[["1000x100"]]
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197852 277.6    7916910 422.9  7916910 422.9
Vcells 9547070  72.9   33191153 253.3 53339345 407.0
> colStats <- microbenchmark(colCummins = colCummins(X), `apply+cummin` = apply(X, MARGIN = 2L, FUN = cummin),
+     unit = "ms")
> X <- t(X)
> gc()
          used  (Mb) gc trigger  (Mb) max used  (Mb)
Ncells 5197846 277.6    7916910 422.9  7916910 422.9
Vcells 9647113  73.7   33191153 253.3 53339345 407.0
> rowStats <- microbenchmark(rowCummins = rowCummins(X), `apply+cummin` = apply(X, MARGIN = 1L, FUN = cummin),
+     unit = "ms")

Table: Benchmarking of colCummins() and apply+cummin() on double+1000x100 data. The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	colCummins	0.250317	0.2719995	0.3410891	0.292485	0.3413595	0.874692
2	apply+cummin	0.967547	1.1052825	1.4761206	1.207747	1.5110725	7.415447

	expr	min	lq	mean	median	uq	max
1	colCummins	1.000000	1.000000	1.000000	1.000000	1.000000	1.000000
2	apply+cummin	3.865287	4.063546	4.327668	4.129261	4.426631	8.477781

Table: Benchmarking of rowCummins() and apply+cummin() on double+1000x100 data (transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
1	rowCummins	0.100188	0.1138775	0.1206343	0.1190735	0.124910	0.171480
2	apply+cummin	0.991236	1.1613455	1.3480390	1.2159060	1.284983	6.781842

	expr	min	lq	mean	median	uq	max
1	rowCummins	1.00000	1.0000	1.00000	1.00000	1.00000	1.00000
2	apply+cummin	9.89376	10.1982	11.17459	10.21139	10.28727	39.54888

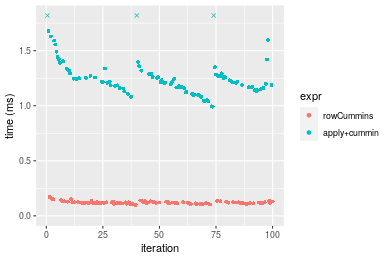

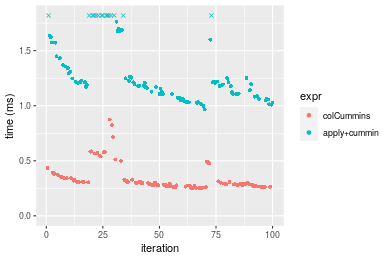

Figure: Benchmarking of colCummins() and apply+cummin() on double+1000x100 data as well as rowCummins() and apply+cummin() on the same data transposed. Outliers are displayed as crosses. Times are in milliseconds.

Table: Benchmarking of colCummins() and rowCummins() on double+1000x100 data (original and transposed). The top panel shows times in milliseconds and the bottom panel shows relative times.

	expr	min	lq	mean	median	uq	max
2	rowCummins	100.188	113.8775	120.6343	119.0735	124.9100	171.480
1	colCummins	250.317	271.9995	341.0891	292.4850	341.3595	874.692

	expr	min	lq	mean	median	uq	max
2	rowCummins	1.000000	1.000000	1.000000	1.00000	1.000000	1.00000
1	colCummins	2.498473	2.388527	2.827463	2.45634	2.732844	5.10084

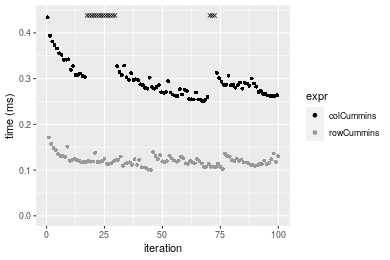

Figure: Benchmarking of colCummins() and rowCummins() on double+1000x100 data (original and transposed). Outliers are displayed as crosses. Times are in milliseconds.

Appendix

Session information

R version 4.1.1 Patched (2021-08-10 r80727)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 18.04.5 LTS

Matrix products: default
BLAS:   /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRblas.so
LAPACK: /home/hb/software/R-devel/R-4-1-branch/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] microbenchmark_1.4-7   matrixStats_0.60.0     ggplot2_3.3.5
[4] knitr_1.33             R.devices_2.17.0       R.utils_2.10.1
[7] R.oo_1.24.0            R.methodsS3_1.8.1-9001 history_0.0.1-9000

loaded via a namespace (and not attached):
 [1] Biobase_2.52.0          httr_1.4.2              splines_4.1.1
 [4] bit64_4.0.5             network_1.17.1          assertthat_0.2.1
 [7] highr_0.9               stats4_4.1.1            blob_1.2.2
[10] GenomeInfoDbData_1.2.6  robustbase_0.93-8       pillar_1.6.2
[13] RSQLite_2.2.8           lattice_0.20-44         glue_1.4.2
[16] digest_0.6.27           XVector_0.32.0          colorspace_2.0-2
[19] Matrix_1.3-4            XML_3.99-0.7            pkgconfig_2.0.3
[22] zlibbioc_1.38.0         genefilter_1.74.0       purrr_0.3.4
[25] ergm_4.1.2              xtable_1.8-4            scales_1.1.1
[28] tibble_3.1.4            annotate_1.70.0         KEGGREST_1.32.0
[31] farver_2.1.0            generics_0.1.0          IRanges_2.26.0
[34] ellipsis_0.3.2          cachem_1.0.6            withr_2.4.2
[37] BiocGenerics_0.38.0     mime_0.11               survival_3.2-13
[40] magrittr_2.0.1          crayon_1.4.1            statnet.common_4.5.0
[43] memoise_2.0.0           laeken_0.5.1            fansi_0.5.0
[46] R.cache_0.15.0          MASS_7.3-54             R.rsp_0.44.0
[49] progressr_0.8.0         tools_4.1.1             lifecycle_1.0.0
[52] S4Vectors_0.30.0        trust_0.1-8             munsell_0.5.0
[55] tabby_0.0.1-9001        AnnotationDbi_1.54.1    Biostrings_2.60.2
[58] compiler_4.1.1          GenomeInfoDb_1.28.1     rlang_0.4.11
[61] grid_4.1.1              RCurl_1.98-1.4          cwhmisc_6.6
[64] rstudioapi_0.13         rappdirs_0.3.3          startup_0.15.0
[67] labeling_0.4.2          bitops_1.0-7            base64enc_0.1-3
[70] boot_1.3-28             gtable_0.3.0            DBI_1.1.1
[73] markdown_1.1            R6_2.5.1                lpSolveAPI_5.5.2.0-17.7
[76] rle_0.9.2               dplyr_1.0.7             fastmap_1.1.0
[79] bit_4.0.4               utf8_1.2.2              parallel_4.1.1
[82] Rcpp_1.0.7              vctrs_0.3.8             png_0.1-7
[85] DEoptimR_1.0-9          tidyselect_1.1.1        xfun_0.25
[88] coda_0.19-4

Total processing time was 24.68 secs.

Reproducibility

To reproduce this report, do:

html <- matrixStats:::benchmark('colCummins')
